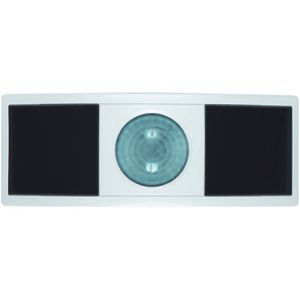

EnOcean Easyclickpro ceiling mounted Occupancy sensor

The wireless Easyclick ceiling-mounted movement detector is supplied with energy from solar cells and detects movements via a 360° passive infrared sensor. The movement detector is easy to install and saves energy. For instance, lighting switches ON automatically when a person enters a room, and automatically OFF after a follow-up time when he leaves again. In this process, the movement detector transmits radio signals to the parameterisable Easyclick receivers or all EnOcean interfaces for the building management systems. Battery operation (CR2032) is possible when the ambient brightness falls below 50 lux.

Technical data:
Transmit frequency: EnOcean 868.3 MHz
Detection range: approx 12 m dia.
Installation height: 2–3 m
Transmit range: approx 25 m
Minimum brightness: 50 lux for automatic ON/OFF
Energy generator: solar cell, internal EDLC
Charging startup time: Programming = approx 4 min at 100 lux = approx 1.5 min at 200 lux
Transmit movement = approx 6 min at 100 lux = approx 3.5 min at 200 lux
For test mode = approx 5.5 hours at 200 lux
Full charging time: 9 hours at 200 lux
Charging times for operation: 3 hours during the day at 200 lux
Operating time in the dark: approx 48 hours
Battery operation: approx 1 year depending on switching frequency
Transmit interval: immediately on movement detection … variably every 60 s at 300 lux to 300 s at 50 lux … OFF every 10 and 30 min after the last movement
EnOcean equipment profile: EEP A5-07-01
Housing: PC, pearl white, similar to RAL 1013
Rating: IP 50
Measurements: 160 mm x 60 mm x 37 mm
Weight: 125 g
Ambient conditions: installation only in buildings, -10 °C to 40 °C, 20% to 95% relative air humidity, noncondensing
Suitable receivers: all Easyclickpro receivers. A separate light sensor can be installed for lighting control based on daylight exposure.

  • Product No. D 451 FU-BM DE (00317316)
  • Manufacturer Honeywell PEHAhttp://www.peha.de
  • Category Occupancy Sensor, Wireless Sensors
  • Field Of Use HVAC, Lighting
  • Frequency 868 MHz (ASK): Europe, China
  • EEP A5-07-01
