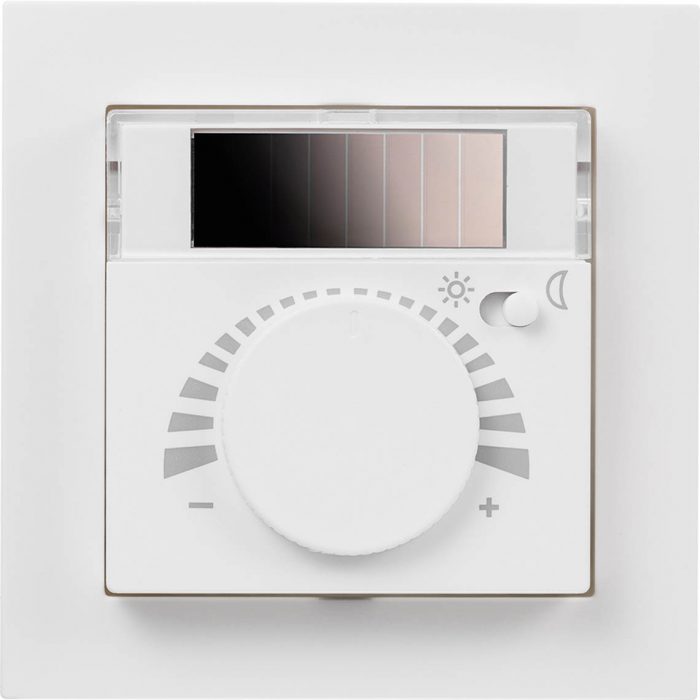

EasySens® SR07 x

Energy-harvesting wireless room operating unit for the measurement of temperature and relative humidity (rH version) in living and office spaces. Also available with set point potentiometer, slide switch (for example ‘Day/Night’) or occupancy button. The device transmits its values unidirectionally to receiving actuators or gateways, which process the information directly or – depending on the application – forward it to a BMS controller. It can be integrated into almost any 55×55 mm frames, allowing you to choose from many designs and frame manufacturers. The SR07 x is mounted by using the adhesive pad or screws.

  • Manufacturer Thermokonhttp://www.thermokon.de
  • Category Room thermostat
  • Frequency 868MHz (ASK): EU (and potentially others e.g. Non-EU Europe, China, Singapure…)
  • TX-EEP A5-02-05, A5-04-01, A5-10-03, A5-10-0C, A5-10-05, A5-10-0D, A5-10-06, A5-10-12, A5-10-13, A5-10-10, A5-10-14, A5-10-11
  • Certification Certified Level 2
