Omnio flush mounted universal dimmer 1-channel UPD230/10

The Omnio flush mounted universal dimmer 1-channel UPD230/10 with extension input is a device for dimming LED luminaires and other electrical loads. Thanks to automatic load recognition (R/L/C) the dimmer selects the right operating mode as well as the ideal dimming curve for the connected light source. Up to 50 Omnio radio transmitters can be

Omnio universal cable dimmer 1-channel KD230/10

The Omnio universal cable dimmer 1-channel KD230/10 is a device for dimming LED luminaires and other electrical loads. Thanks to automatic load recognition (R/L/C) the dimmer selects the right operating mode as well as the ideal dimming curve for the connected light source. Up to 50 Omnio radio transmitters can be programmed. Each transmitter can

Omnio flush-mounted blind actuator 1-channel UPJ230/12

The Omnio flush-mounted blind actuator 1-channel UPJ230/12 is a device to control 230 V~ tubular motors of blinds, sun blinds, awnings, sliding gates or garage doors. Its two potential free interlocked outputs are able to regulate one drive and can be actuated from up to 50 Omnio radio transmitters. This allows the exact positioning of

Omnio DIN rail mounted blind actuator 4-channels REGJ12/04

The Omnio DIN rail mounted blind actuator 4-channels REGJ12/04M is a device to control 230 V~ tubular motors of blinds, sun blinds, awnings, sliding gates or garage doors. Its eight potential free interlocked outputs are able to regulate four drives and these can be actuated from up to 50 Omnio radio transmitters. This allows the

Omnio blind cable actuator 1-channel KXJ230/12

The blind cable actuator 1-channel KXJ230/12 is a device to control 230 V~ tubular motors of blinds, sun blinds, awnings, sliding gates or garage doors. Its two interlocked outputs are able to regulate one drive and can be actuated from up to 50 Omnio radio transmitters. This allows the exact positioning of the blinds and

CO2-Sensor

The CO2-sensor is a wired radio sensor to capture the concentration of carbon dioxide (400…2550 ppm) in the air. The measured values are transmitted wireless to Omnio gateways. It is particularly used to control the air quality indoors in offices, schools, hotels and residential premises. EnOcean Equipment Profile (EEP) A5-09-04.

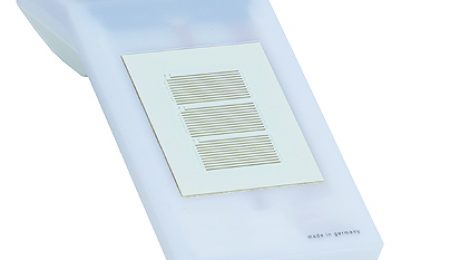

Weather sensor P04B-RS485

The weather sensor P04B-RS485 is a wired sensor to capture temperature (-40 … +70 °C), wind speed (0 … 35 m/s), brightness of east, south and west sun (0 … 99’000 lx) and rainfall. In addition a twilight sensor is available. The weather data are submitted to the integrated RS485-inteface once every second. Interacting with

Omnio weather evaluation unit XFJ

The Omnio weather evaluation unit XFJ is able to convert the captured weather data into EnOcean telegrams. This way blinds can be pilot-controlled and protected against thunderstorms. The following individual signals are available: Channel 1: Weather raw data for higher-level systems according to EEP A5-13-01… 06. Channel 2: Alarm due to failure of the weather

Akktor Facility Automation

Control software for lighting, blinds and room temperature, for smart metering and for complex heating systems.

WaterSensor con

Application For the detection of accumulations of water at defined horizontal surfaces or positions (e.g. in the area of fittings washing machines, coffee makers with water connection, etc.). Suitable for water. Description WaterSensor con features a conductivity sensor at the bottom. The energy required to send an EnOcean® telegram is generated by means of an
