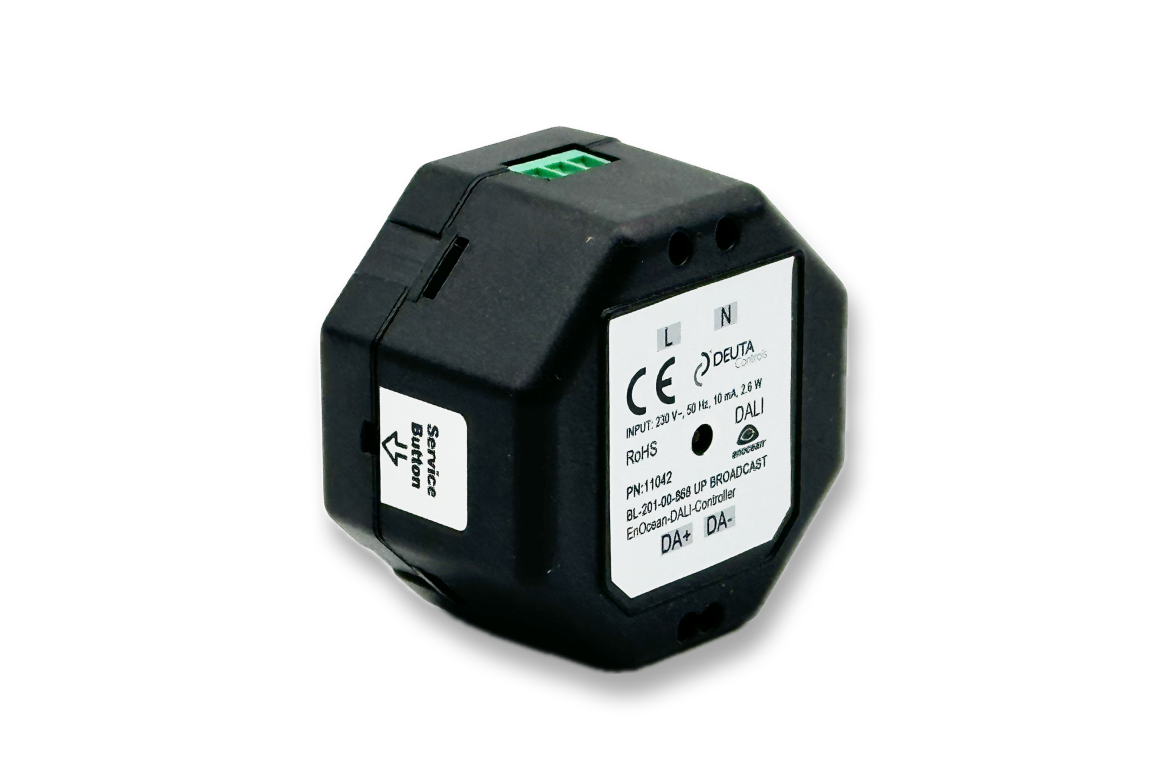

BL-201-00-868 UP BROADCAST, EnOcean-DALI-Controller
The BL-201-00-868 UP BROADCAST EnOcean-DALI-Controller provides one DALI master with an integrated DALI power supply for the direct connection of up to 17 slaves (Iout max.= 34 mA), without a separate DALI power supply. Also an EnOcean wireless transceiver is integrated. This allows the smart and easy integration and
combination of DALI ballasts and EnOcean wireless technology. The BL-201 is supplied by 230 V AC line voltage.
The BL-201-00-868 UP BROADCAST can be controlled by an EnOcean switch or also by a control unit. Functionality is described as follows:
Function: Single rocker to control DALI ballasts On / Off / Dim via DALI broadcast DAPC commands.
Push service button <= 1 sec.:
Sets BL-201 into learn-mode, service LED is steady on:
EnOcean switch is pressed: Switch is paired with BL-201
Push Service button >=2 sec.:
Service-LED will turn on for 1 sec.: No more switch / control unit is paired with the BL-201.
Keypress rocker top short:
Switch on all ballasts on DALI line
Keypress rocker bottom short:
Switch off all ballasts on DALI line
Keypress rocker top long:
Brighten of ballasts until key is released or 100% is reached
Keypress rocker bottom long:
Dim of ballasts until key is released or 0% is reached.
- Product No. # 11042, BL-201-00-868 UP BROADCAST
- Manufacturer DEUTA Controlshttp://www.deuta-controls.de
- Category Gateway & Building Management Systems, Gateway: DALI
- Frequency 868 MHz (ASK): Europe (and potentially others, e.g. China)
- RX-EEP F6-03-01, F6-03-02
- Certification Certified 2.0
- Datasheet 11042_Datasheet_BL_201_00_868_UP_BROADCAST_2017_06_02_V40.pdf https://deuta-controls.net/home-2/produkte/gebaeudeautomation/light-controller-with-fixed-functionality-gateways/bl-201-00-868-up-broadcast-enocean-dali-controller/?lang=en#tab-id-2
- Manual ZG_10974_01_V06_020617_Beipackzettel_11042_BL_201_00_868_UP_BROADCAST_DE_EN.pdf https://deuta-controls.net/home-2/produkte/gebaeudeautomation/light-controller-with-fixed-functionality-gateways/bl-201-00-868-up-broadcast-enocean-dali-controller/?lang=en#tab-id-2
