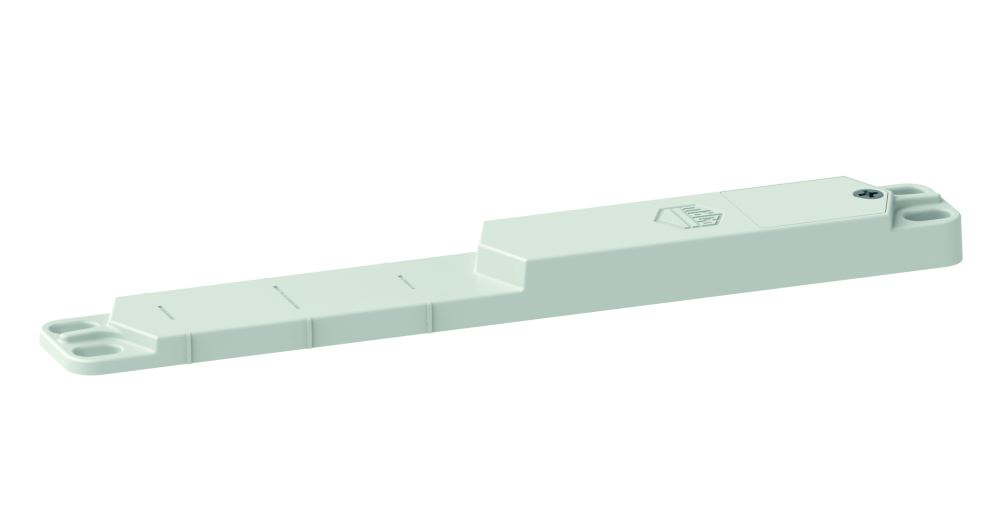

mTRONIC Multisensor with intelligent burglary detection

The mTRONIC Multisensor is used to show the status of windows, doors, and large-scale units.

With the intelligent burglary detection the Multisensor can automatically detect if a burglar tries to lift up the sash form a window.

To do so, a permanent magnet with dimensions Ø5×5 mm is installed opposite the mTRONIC multisensor. The permanent magnet can either be installed on the connecting-rod of the hardware or on an immovable hardware component on the sash or directly on the sash.

This enables the mTRONIC multisensor to perform the following functions:

Opening monitoring:

The permanent magnet is fixed to the sash or an immovable hardware component on the sash. The mTRONIC multisensor is positioned in relation to the permanent magnet so that only the top reed contact is switched. Thus, only the opening modus of the sash can be queried.

I.e. “Open” and “Closed”

Locking monitoring:

The permanent magnet is installed directly on the connecting-rod of the hardware. The central locking system of the hardware must be positioned centrally and the mTRONIC multisensor with its central position notch must be positioned precisely opposite the permanent magnet. Thus the status of the connecting-rod can be queried.

I.e. “Locked”, “Open” and “Tilted”

  • Product No. 476777
  • Manufacturer MACO - MAYER & CO BESCHLÄGEhttp://www.maco.eu
  • Category Alarm/Warning Sensor, Position Sensor, Wireless Sensors
  • Frequency 868MHz (ASK): EU (and potentially others e.g. Non-EU Europe, China, Singapure…)
  • TX-EEP A5-14-0A
  • Certification Certified Level 2
