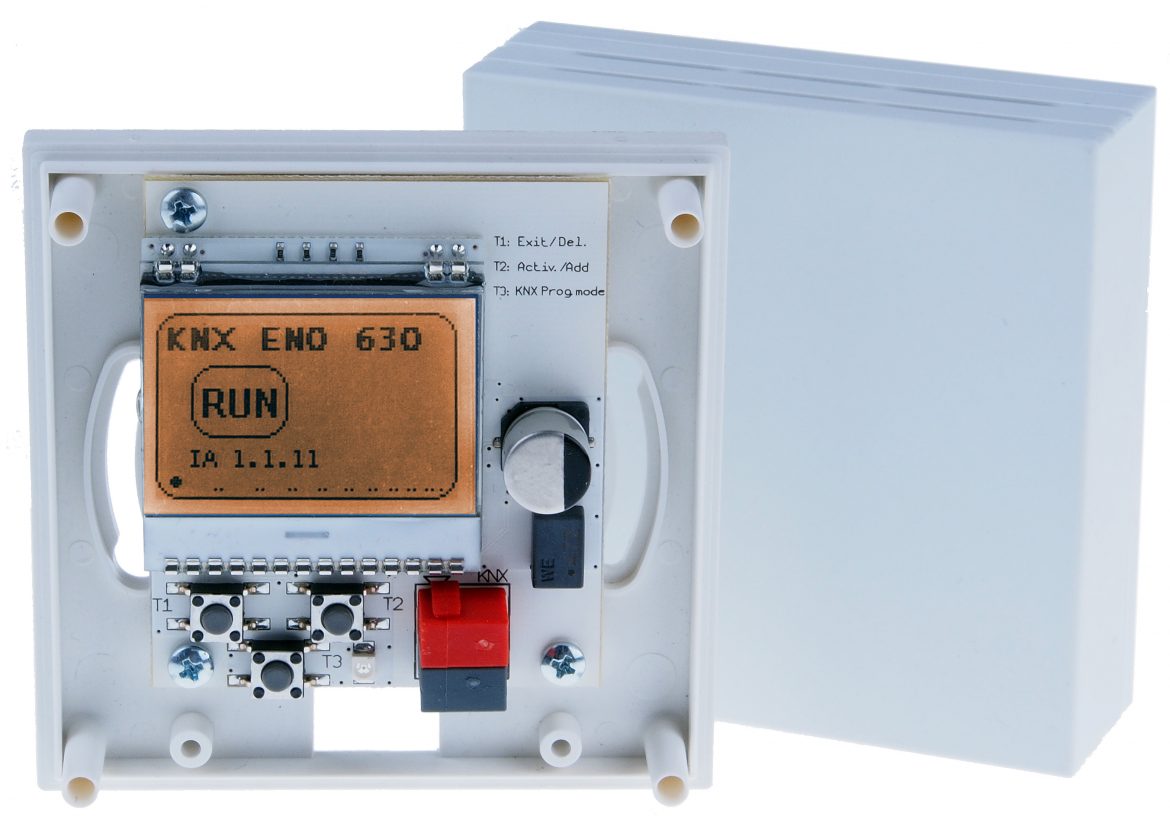

Gateway KNX ENO 630

The unit KNX ENO 630 serves as a unidirectional gateway between EnOcean radio devices and the KNX/EIB bus. With this device, commands and measured values of EnOcean wireless sensors can be transferred to the KNX bus, for example, to control KNX actuators.For EnOcean sensors the device is based on the so-called EnOcean Equipment Profiles (EEP). The implemented profiles mostly are specified in the data sheets of the sensors. For the control of EnOcean actuators corresponding EEPs are emulated.

This means, the gateway sends radio telegrams such as a push button or a window contact. In addition the gateway supports logical and control functions and has a radio repeater included.

The KNX ENO 630 is organized in 16 channels. Each channel can be assigned to one of the following functions:

Link from EnOcean sensor to KNX:

  • Switching and contact functions
    • Switching
    • Dimming
    • Shutter up/down
    • Scene
  • Window contacts
  • Window handles
  • Key cards switches
  • Ressure switches
  • Temperature sensors
  • Humidity sensors
  • Light sensors
  • Presence sensors
  • Gas sensors
  • Room control devices
  • Automated counter devices
  • Environmental sensors (weather station)
  • Digital inputs

Control / logic:

  • Timer
    • Delay
    • Tracking circuit
  • Control
    • Lighting control
  • Logical functions
    • Gates (e.g. AND, OR, XOR)
    • Toggle

Other

  • Trigger
  • Encoder
  • Watchdog

The configuration of the device and the channels is done using the ETS software via the KNX bus. For the teach-in of the wireless components the keys and the display in the device are used.

  • Product No. Weinzierl Art. No. 5129
  • Manufacturer Weinzierl Engineeringhttp://www.weinzierl.de
  • Category Gateway & Building Management Systems, Gateway: KNX
  • Frequency 868MHz (ASK): EU (and potentially others e.g. Non-EU Europe, China, Singapure…)
  • Certification Certified Level 2
