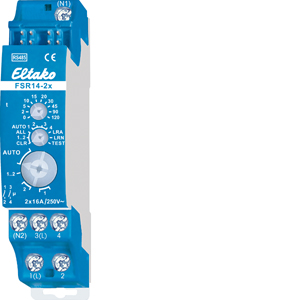

Eltako RS485 bus actuator 2-channel impulse switch FSR14-2x

2-channel impulse switch with integrated relay function, 1+1 NO contacts potential free 16 A/250 V AC, 230 V LED lamps up to 400 W, incandescent lamps 2000 watts, with DX technology. Bidirectional. Only 0.1 watt standby loss.

Operation only possible with the wireless antenna module FAM14.

  • Product No. 30014002
  • Manufacturer Eltakohttp://www.eltako.com/
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868MHz (ASK): EU (and potentially others e.g. Non-EU Europe, China, Singapure…)

Downloads

Eltako RS485 bus actuator 2-channel impulse switch FSR14-2x
