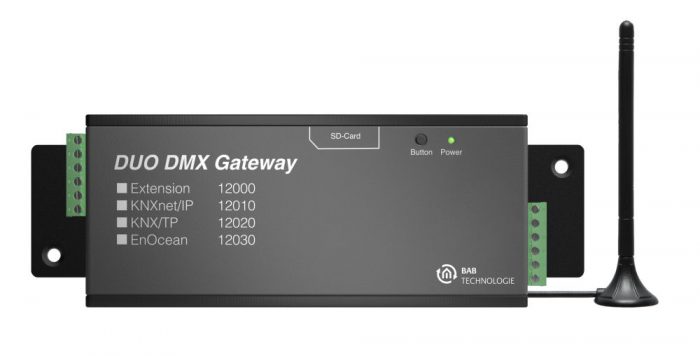

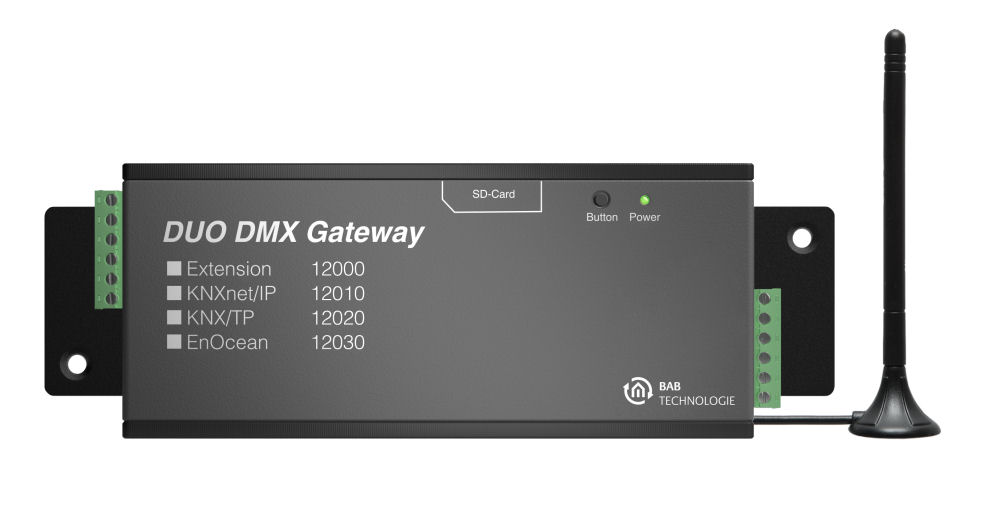

DUO DMX Gateway

The device provides 2 DMX outputs with 512 channels each which are programmed independently from each other. So e. g. two rooms can be controlled differently by just using one device. Beneath linking of light scenes the separate channels can be switched and dimmed directly by KNX® group addresses or EnOcean® profiles. The EnOcean® version is excellently suitable for retrofitting of installations. So the device is designed as ceiling mounted variant and can be mounted easily through the cut-out of a LV-halogen spot. Using the optionally DIN-Rail bar clip the device can be mounted in the distribution box alternatively. Therefore the cover plates just have to be snapped off.

  • For control of e. g. DMX-RGB dimmers or RGB LED luminaries with DMX-interface
  • 2 separated outputs each with 512 DMX channels
  • PoE connector and separate power supply 10–32 V DC, 1,2 VA
  • Measures W x H x D (in mm): 50 x 26 x 146 (incl. Mounting plates)
  • In-ceiling mounting or DIN-Rail bar adapter for distribution box mounting
  • Programming of DMX sequences with free professional DMX software (DMX-Configurator)
  • Data upload via SD-card or Ethernet interface

This post is also available in: German Chinese (Simplified) French Italian Japanese

  • Manufacturer b.a.b-technologiehttp://www.bab-tec.de
  • Category Gateway & Building Management Systems, Gateway: Other
  • Field Of Use HVAC, Lighting
  • Frequency 868 MHz (ASK): Europe (and potentially others, e.g. China)
