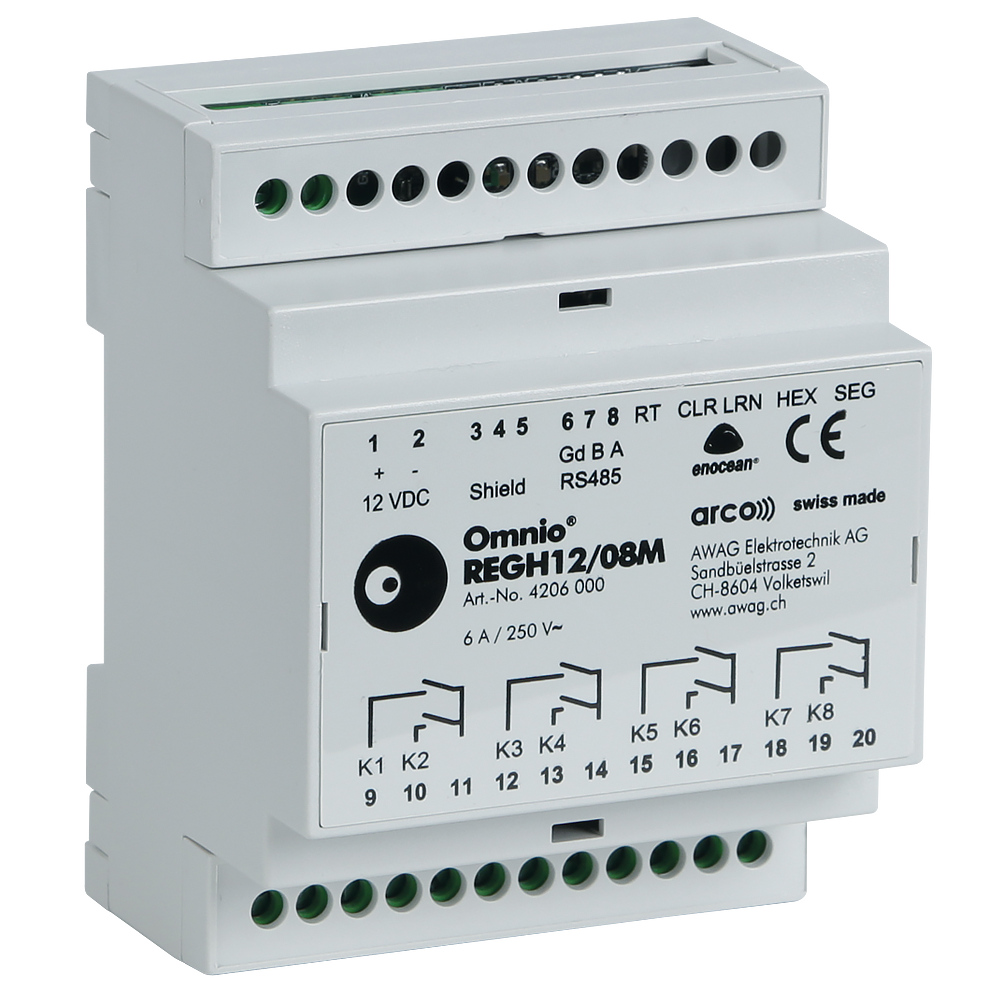

Omnio DIN rail mounted thermostat actuator 8-channels REGH12/08

The Omnio DIN rail mounted thermostat actuator 8-channels REGH12/08M is a device to regulate temperature in single rooms via two point controller with hysteresis. Its eight potential free outputs are able to actuate and regulate control valves, electric heaters or similar electric loads. Each output can be actuated from an Omnio room sensor RTF and up to eight Omnio window contacts or –handles in AND operation. The required room temperature (set point value) is adjusted through the room sensor, which is able to transmit the set temperature via radio to the thermostat actuator. In case of any failure the frost protection automatically turns on. Further features are set point value shifting, the switch over to a second set point value or window controller. Bidirectional communication, EnOcean Equipment Profile (EEP) D2-01-14, ARCO ready (AWAG Remote Commissioning). Suitable as DIN rail mounted device in distributing cabinets. Width 4 TE.

  • Product No. 4206 000
  • Manufacturer AWAGhttp://www.awag.ch/
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Field Of Use HVAC
  • Frequency 868 MHz (ASK): Europe, China
  • EEP D2-01-14
  • Certification Certified 2.0

Downloads
