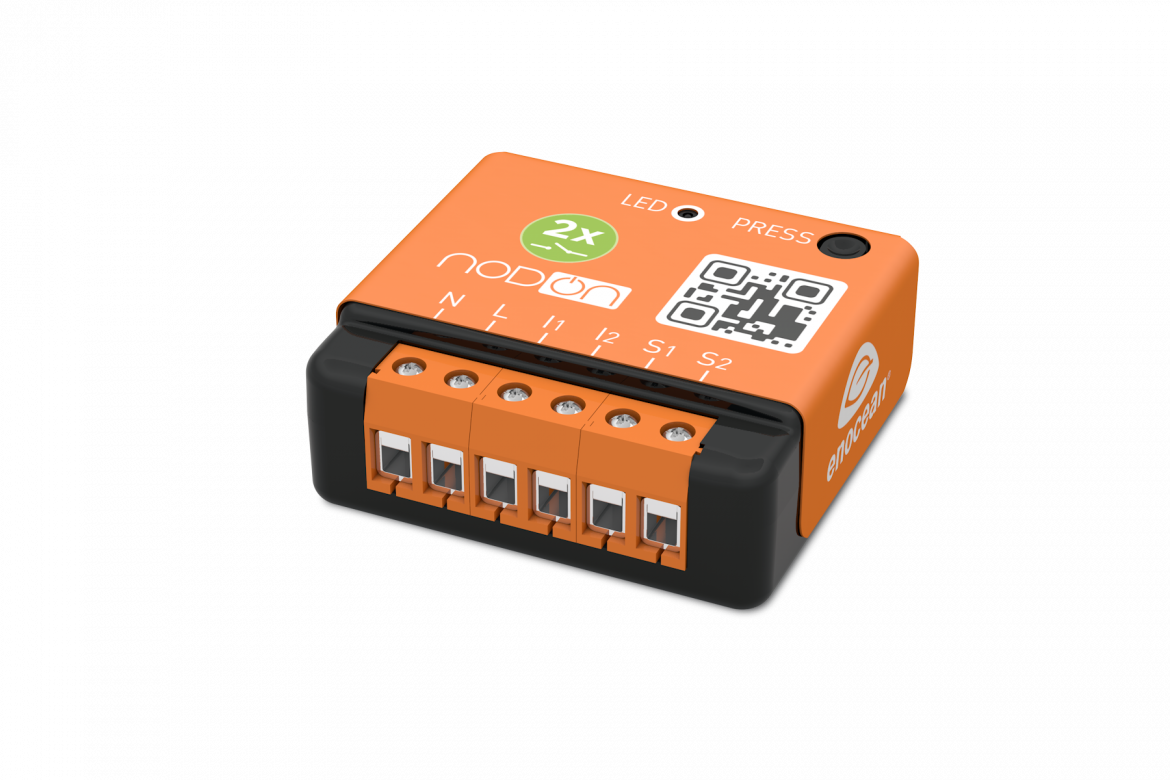

NodOn Relay Switch 2 Channels

This ultra small size Relay Switch will transform your home into a smart home

Compatible with the EnOcean® worldwide Smart Home & Smart Building protocol, the NodOn® Relay Switch is mounted in your ceiling, in your wall or behind your electrical socket, and will turn any dumb device into a Smart Device. You want to make your lighting system smart and add as much transmitters (Wall Switch, Remote) as you want, without any construction work, dust and trouble? Here you are.

With my Relay Switch 2 Channels I can…

  • Turn my lights into smart, remotely controllable lighting system
  • Create a Back & Forth system, without breaking my walls
  • Retrofit easily and without any construction work the lighting system of my room. Add a new Wall Switch, Remote Control,… battery-less, wireless
  • Switch ON / OFF my appliances remotely, directly from the wall

Technical specifications:

Power supply : 230V AC +/-10% 50Hz
Maximum output power: 2*1.1kW (Resistive load)
Self-consumption: <1W
Operational temperature: 0°C to 40°
Radio: EnOcean® Protocol
EEP: D2-01-12
868.3MHz Bidirectional
Range: 30m
2 inputs for existing wired wall switch(es)
Dimension – 40*45*16,9mm

  • Manufacturer NodOn
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP D2-01-12
  • Certification Certified Level 2
