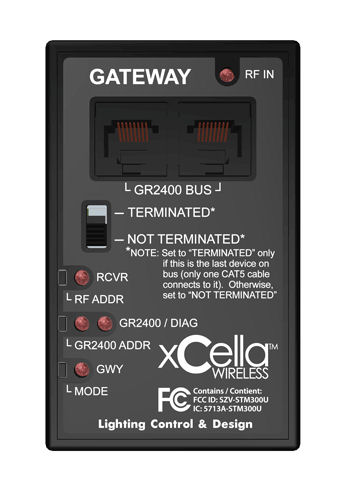

xCella Wireless Gateway

The xCella Wireless Gateway works together with all xCella Wireless products to communicate with the GR 2400™ system. The xCella Wireless Gateway is powered by the GR 2400 bus (12VDC). The unit itself is wired with Cat. 5 cables and RJ-45 connectors. The Gateway can be used to link wireless devices to a GR 2400 wired system or to network together multiple wireless panels and devices. As with any wireless system, care must be taken to ensure that the signal is received from each of the wireless devices. The receiver location may be moved to optimize the system.

Features:

• 120 Ohms termination resistance (a slide switch activates the terminator)
• Takes 2 consecutive bus addresses
• Easy to program
• Powered by the GR 2400 System Bus
