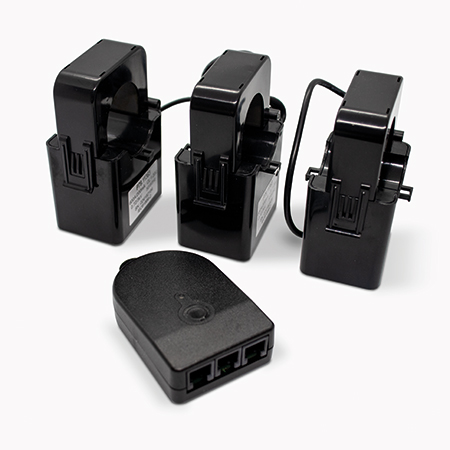

EnOcean Wireless Three Channel CT Clamp

Measure energy consumption at a circuit, zone or machine level, in real time

Pressac’s wireless current sensors (CT) measure the alternating current (AC) and report the average of 5 measurements every 30 seconds.

The small, energy-harvesting devices use ultra-low power wireless and battery-less technology making them easy to install and very low maintenance. They simply clip around a cable and the wireless transmitter attaches outside the panel for reliable wireless data transmission. They can easily be fitted inside a machinery panel, distribution panel or other suitable location.

Wireless, self-powered current sensors
They simply clip around a cable and measure the electrical current, so there’s no interruption to the electrical supply

Reports current every 30 seconds
Sensors measure AC current (50Hz or 60Hz) and reports average of 5 measurements every 30 seconds

Access real-time data locally or in the cloud
Using our Smart Gateway, data is encrypted and sent locally or to your chosen cloud platform via MQTT

Features

  • Sensors measure AC current (50Hz or 60Hz). Reports average of 5 measurements every 30 seconds
  • Single-channel (single-phase) clamps measure the electrical current flowing in a single cable, while three-channel (3-phase) clamps measure current in 3 individual cables. Normally you will find single-phase systems in, for instance, households and office buildings. In the industry and for heavier machines, three-phase electric power is typically used.
    • One channel measurement ranges:
      1A–60A (accuracy +/- 0.1A or 2%, whichever is greater)
      2A–200A (accuracy +/- 0.1A or 2.5%, whichever is greater)
    • Three channels measurement ranges:
      1A–60A (accuracy +/- 0.1A or 2%, whichever is greater)
      2A–200A (accuracy +/- 0.1A or 2.5%, whichever is greater)
      2A-600A (accuracy +/- 1A or 3%, whichever is greater)
  • Self-powered using ultra-low energy from the measured conductor, so there’s no need for batteries or wiring
  • Clamps simply clip around cables with no interruption to electrical supply. The wireless transmitter attaches outside the panel for reliable wireless data transmission
  • Transmit data wirelessly and securely – using AES-128 encryption – via EnOcean wireless protocol, which uses internationally approved, licence-free ISM bands
    • 868 MHz for Europe (RED)
    • 902 MHz for North America (FCC) and Canada (IC)
    • 928 MHz for Japan (ARIB specification)
  • EnOcean Equipment Profile (EEP): D2-32-00, D2-32-02
  • No recurring fees. Access the data through your chosen platform, without any additional costs from Presssac.
  • Manufactured in the UK to high-quality and high-safety specifications, they are subject to rigorous testing procedures.
  • Packaging unit: single

Download product sheet

Wireless smart sensor and connected technology

  • Quick to install and set up
  • Ultra-low power, energy-harvesting
  • Secure licence-free transmission
  • Interoperable and scalable
  • Highest quality and compliance

Learn more about Pressac’s sensor technology

Easily access and integrate real-time desk occupancy sensor data

Pressac’s technology is system agnostic, the data from our sensors can be used in any way you need. There are different options to choose from, making it easy to get your data in the way that’s right for you.

  • Access your sensor data in a spreadsheet
  • Visualise sensor data using Node-RED
  • Integrate live data into any software or IoT platform
  • Feed sensor data into existing building management systems
  • Connect sensors directly to EnOcean controllers

Learn more about accessing and integrating sensor data

  • Product No. CTV3_[868]-[902]-[928]_3CH_060A, CTV3_[868]-[902]-[928]_3CH_200A, CTV3_[868]-[902]-[928]_3CH_600A
  • Manufacturer Pressachttps://www.pressac.com/
  • Category Metering Sensor, Wireless Sensors
  • Frequency 928 MHz: Japan
  • TX-EEP D2-32-02
  • Certification Certified 2.0
