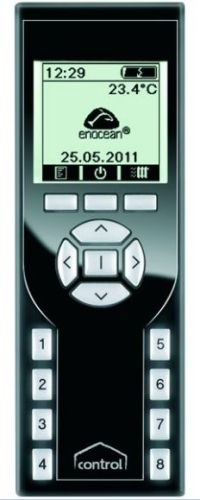

EnOcean Easyclickpro miniature handheld, black, 128 channels

The bidirectional Easyclick de luxe handheld transmitter is a user friendly remote control for both Easyclick and all other receivers based on EnOcean technology. The Easyclick de luxe handheld transmitter is therefore ideal for switching/dimming lights, regulating blinds/shutters/ canopies, and actuating many other electrical consumers. In addition, the device provides the fitter with EnOcean service functions for planning ranges and can also test the functions during initial operations.
Included in delivery: 3 AAA NiMH rechargeable batteries with USB charger and separate USB cable.

Technical data:
• 128 bidirectional radio channels
• 32 configurable levels
• time of day, date, and temperature in °C or °F
• predefined texts and symbols
• PIN code lock possible
• 32 programmable timers
• 8 configurable shortcut keys
• The handheld transmitter can be used to configure all levels with the listed entries
• The PC software is available for download at the internet address www.peha.de
• The software is enhanced and updated by internet downloads
• The software can configure up to 32 user functions, e.g. lighting scenes, with up to 16 actions
• EnOcean service functions like e.g. ID view, radio signal quality, radio link test, etc., test the range between two Easyclick de luxe handheld transmitters
• The Easyclick de luxe handheld transmitter can visualise actual switched and dimmed statuses of the Easyclickpro receivers*
• Visualisation of energy consumptions and operating hours of consumers connected to Easyclickpro receivers with energy meter*
* Firmware 2.0 or later
Measurements: 165 x 55 x 21 mm

  • Product No. D 450 FU-HS128 (00364936)
  • Manufacturer Honeywell PEHAhttp://www.peha.de
  • Category Remote Switch, Wireless Switches
  • Field Of Use Lighting
  • Frequency 868 MHz (ASK): Europe, China
  • EEP A5-38-08, A5-38-09, F6-02-01
  • Certification Certified 2.0
