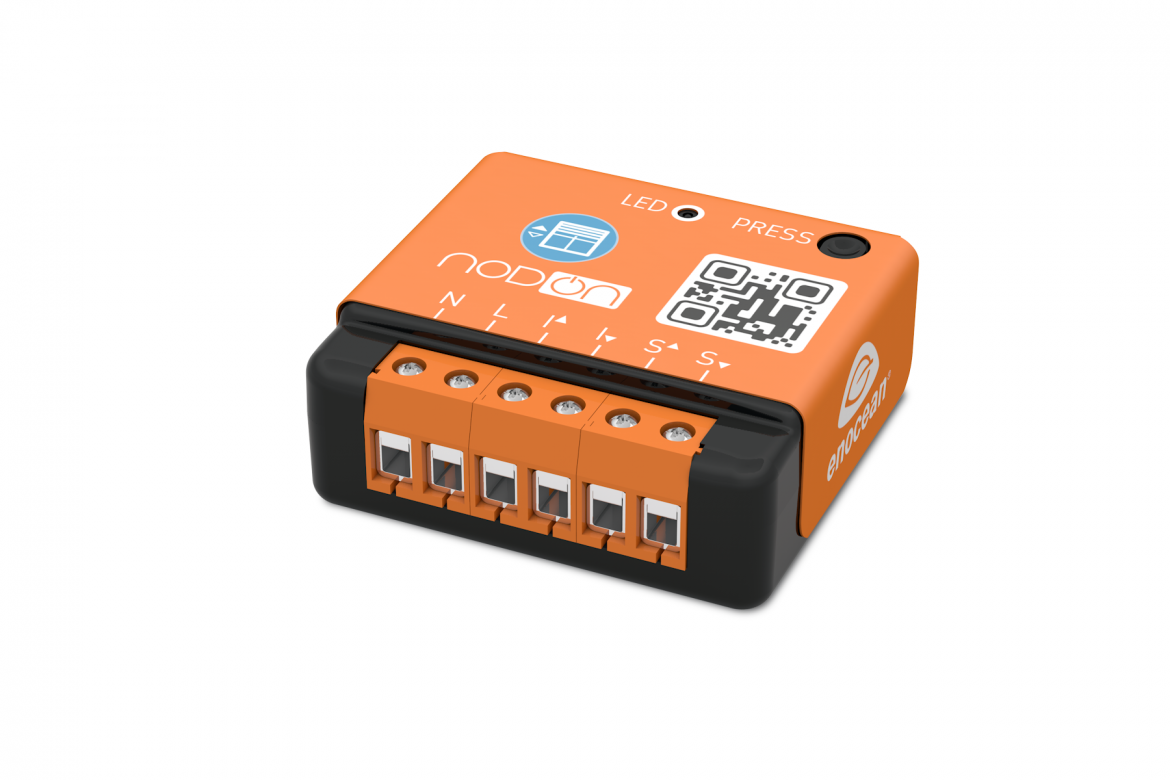

NodOn Roller shutter module

Retrofit your shutters and control it anywhere in your home

With the Roller Shutter Module, compatible with the EnOcean® worldwide Smart Home & Smart Building protocol, transform your shutters into smart devices. No more need to absolutely use the wall switch near the shutter: the Roller Shutter Module offers you a real opportunity, with no work construction and no wire, to control your shutters from anywhere in your home. For more comfort, launch wake up or night scenarios and automatically close/open your roller shutters.

With my Roller Shutter Module, I can

  • Add another wall switch to control my roller shutters far away from my roller shutter
  • Launch a scenario to automatically open my roller shutters to let the outside heat come in instead of switching my heating system ON
  • Simulate my presence when I am away by opening/closing the shutters to prevent from theft
  • Launch a “good morning” scenario: open the roller shutters at only 20% to wake-up very softly



Technical specifications

Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC – 10A // 30V DC – 10A
Maximum engine power: 150 W
Self-consumption: <1W
Operational temperature: 0°C to 40°C
EEP (EnOcean® Profile): D2-05-00
Center radio frequency: 868.3 MHz
Range: 20-30 meters indoor
Dimensions : 40 mm (l) x 44 mm (L) x 16.9 mm (h)





  • Manufacturer NodOnhttp://nodon.fr
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP D2-05-00
  • Certification Certified 2.0
