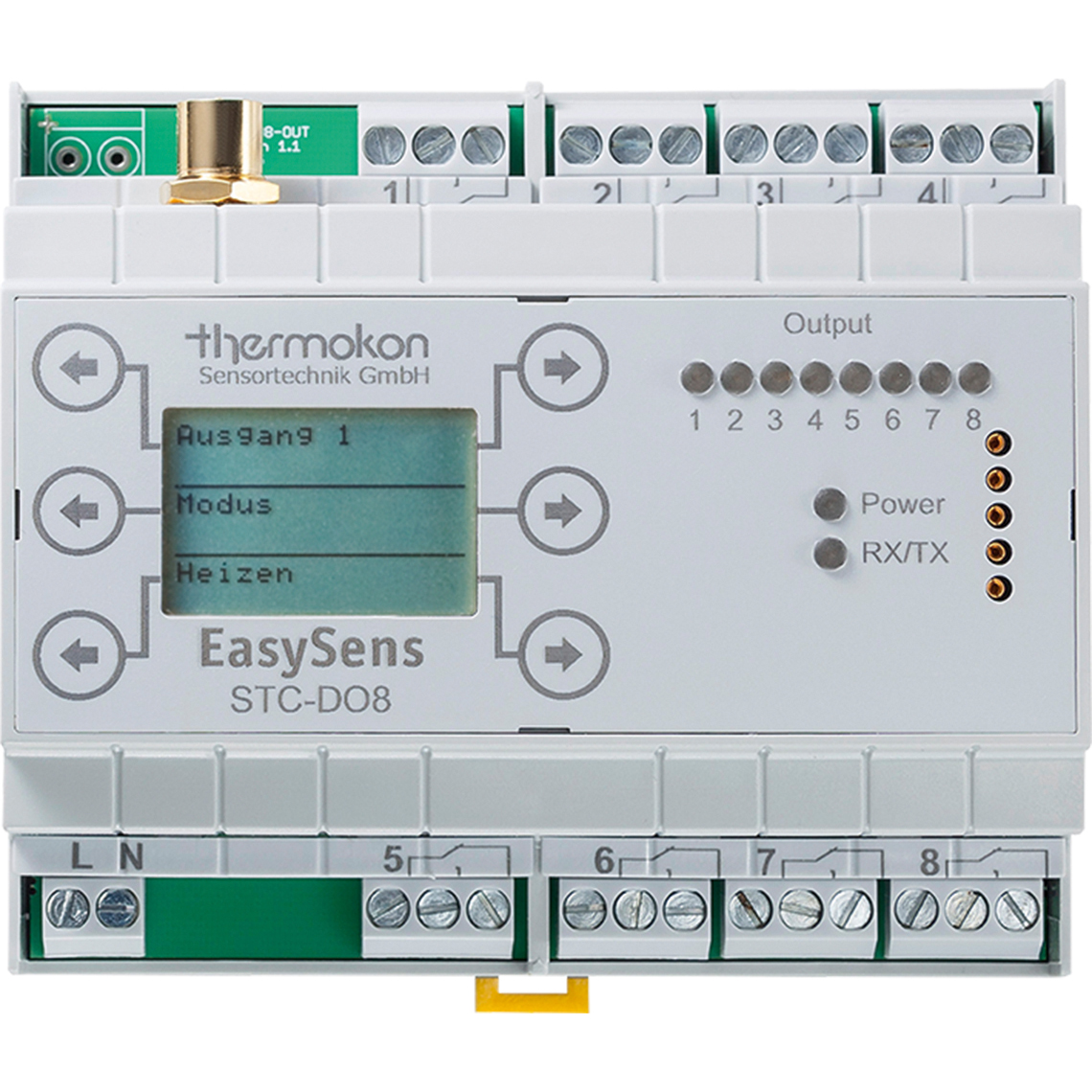

EasySens® STC-DO8

Bidirectional receiving actuator for (DIN) rail mounting with 8 relay outputs (expandable up to 12 relay outputs using the ‘STC-PLUS 4DO’ expansion module) for the evaluation of EnOcean sensors, switches and room operating units. Suitable for heating/cooling control, fan coil control, light switching, shutter and blind control. The delivery content includes an external antenna for achieving best possible transmission range.

  • Manufacturer Thermokonhttp://www.thermokon.de
  • Category Actuator / Relay Receiver, Receivers & Controllers, Room Controller
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP D5-00-01, F6-02-01, F6-02-02, F6-02-03, F6-02-04, F6-04-01, F6-10-00, A5-02-05, A5-04-01, A5-07-01, A5-09-04, A5-30-01, A5-10-01, A5-10-02, A5-10-04, A5-10-03, A5-10-06, A5-10-05, A5-10-10, A5-10-11, A5-10-12, A5-10-13, A5-10-0C, A5-20-01, A5-20-12
  • Certification Certified 2.0
