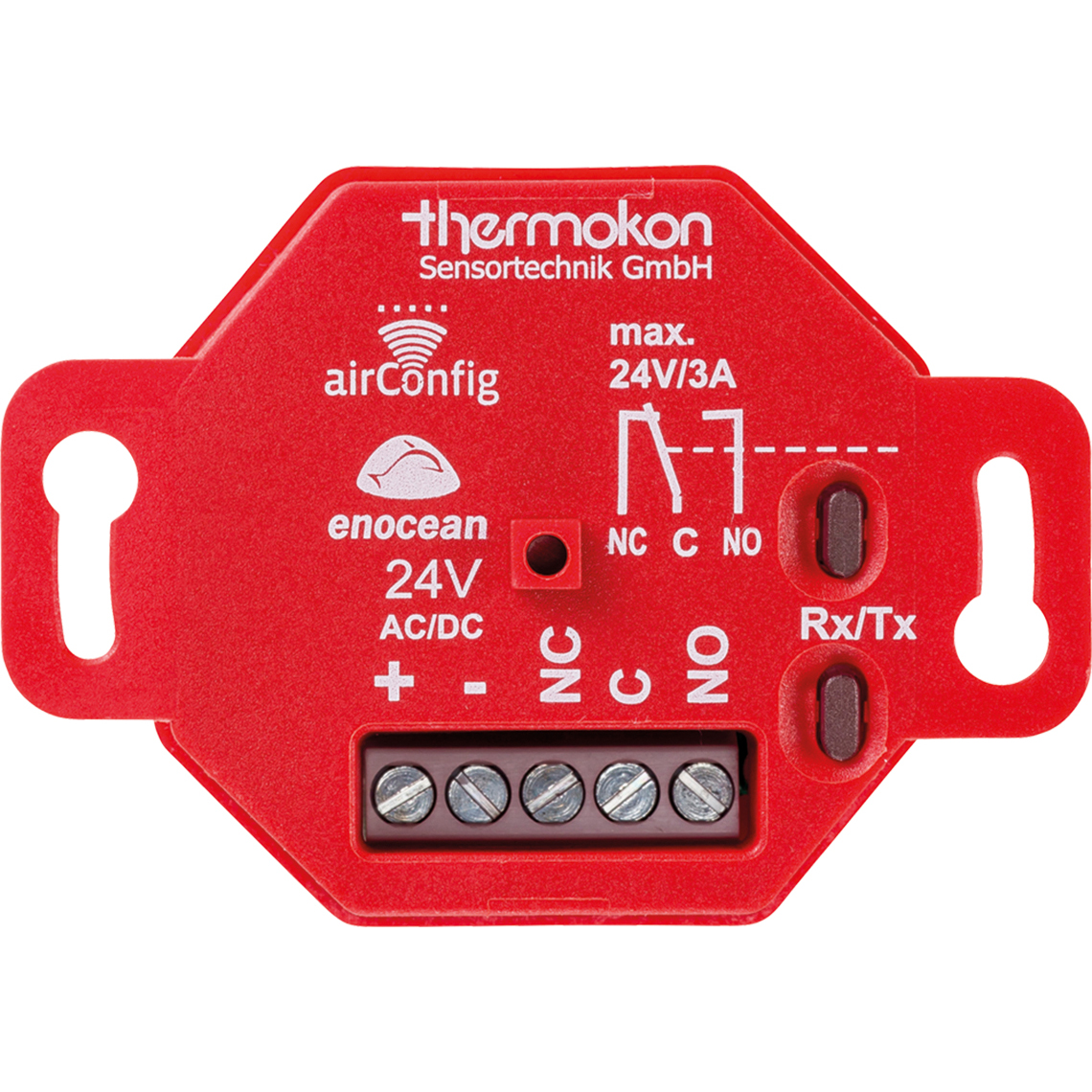

EasySens® STC-DO

Bidirectional flush-mounted receiving actuator for EasySens® devices with one relay output. Functions/applications can be individually configured via airConfig software for e.g. heating with PWM, heating ON/OFF, signal contact, status feedback, hygrostat control, heating/cooling with PWM, light ON/OFF or fan speed control. The STC-DO is a universal relay acatuator that can be configured through airConfig depending on the application.

  • Manufacturer Thermokonhttp://www.thermokon.de
  • Category Actuator / Relay Receiver, Receivers & Controllers, Room Controller
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP F6-02-01, F6-02-02, F6-02-03, F6-03-01, F6-03-02, F6-04-01, D5-00-01, F6-10-00, A5-04-01, A5-04-02, A5-04-03, A5-06-01, A5-06-02, A5-06-03, A5-06-04, A5-06-05, A5-02-01, A5-02-02, A5-02-03, A5-02-04, A5-02-05, A5-02-06, A5-02-07, A5-02-08, A5-02-09, A5-02-0A, A5-02-0B, A5-02-10, A5-02-11, A5-02-12, A5-02-13, A5-02-14, A5-02-15, A5-02-16, A5-02-17, A5-02-18, A5-02-19, A5-02-1A, A5-02-1B, A5-07-01, A5-07-02, A5-07-03, A5-08-01, A5-08-02, A5-08-03, A5-09-02, A5-09-04, A5-09-08, A5-09-09, A5-10-01, A5-10-02, A5-10-03, A5-10-04, A5-10-05, A5-10-06, A5-10-07, A5-10-08, A5-10-09, A5-10-0A, A5-10-0B, A5-10-0C, A5-10-0D, A5-10-10, A5-10-11, A5-10-12, A5-10-13, A5-10-14, A5-10-18, A5-10-19, A5-10-1A, A5-10-1B, A5-10-1C, A5-10-1D, A5-10-1F, A5-20-12, A5-30-01, A5-30-02, A5-10-22, A5-10-23, A5-14-01, A5-14-02, A5-14-03, A5-14-04, A5-14-06
  • TX-EEP A5-11-02, A5-30-02
  • Certification Certified 2.0
