For the detection of accumulations of water at defined horizontal surfaces or positions (e.g. below pipes, fittings and in the area of washing machines, below bath tubs or dishwashers, in utility rooms or basements). Suitable for water.

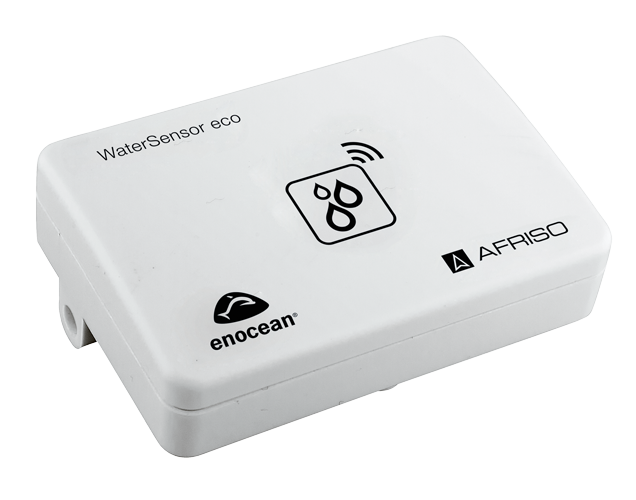

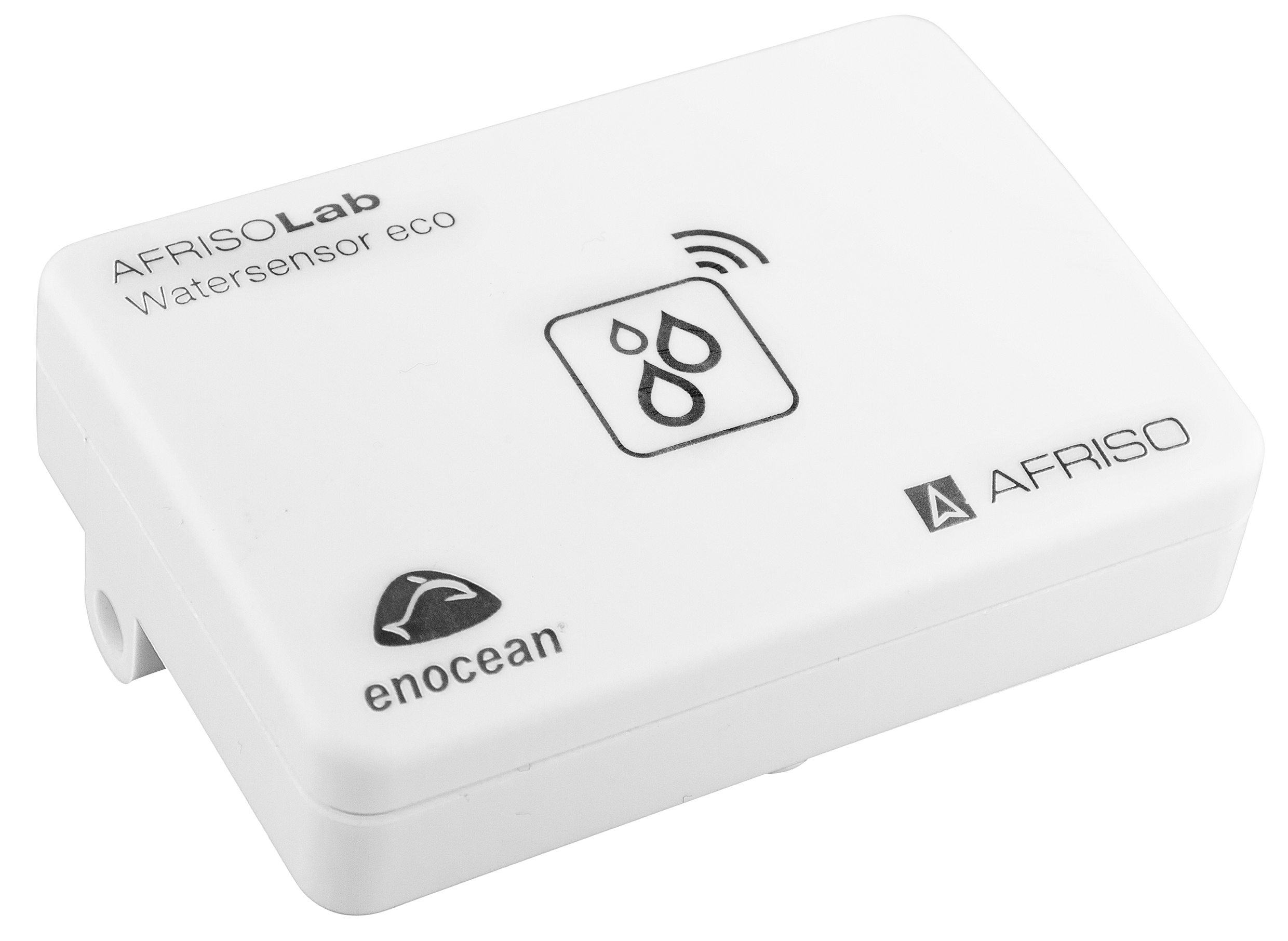

WaterSensor eco is equipped with fibre disks that work as a sensor; it does not require an additional power supply. In the case of a leak, the fibre disks expand and generate the required power to send the event message to WaterControl 01 or to the AFRISOhome gateway. The event message is sent when the fibre disks expand or shrink.
WaterControl 01 can be used, for example, to shut off the water pipe to keep further water from escaping. The AFRISOhome gateway transmits alarm messages and state transition messages via WLAN, LAN and GSM to the person in charge (for example, to the owner, the facility manager, the janitor or other configured contacts); the message includes information on which WaterSensor eco has signalled the state transition. The AFRISOhome gateway in conjunction with additional AFRISO products with EnOcean® wireless technology allows the user to configure a whole range of fully customisable, extensible applications.
- Manufacturer AFRISOhttp://www.afriso.de
- Category Water Sensor, Wireless Sensors
- Frequency 868 MHz (ASK): Europe, China
- TX-EEP F6-05-01
- Certification Certified 3.0
