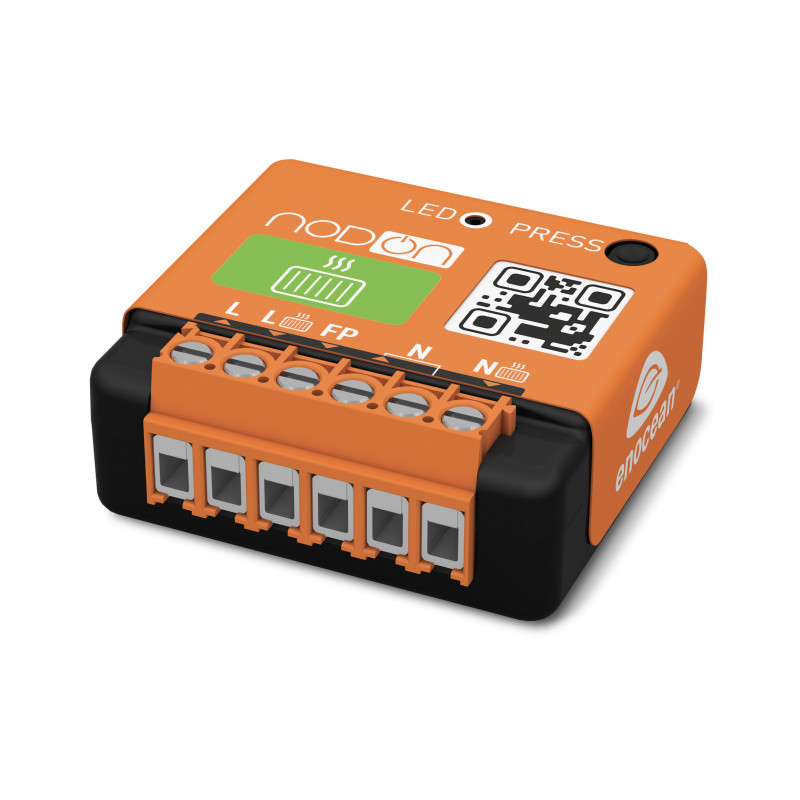

NODON – EnOcean pilot wire heating module

Intelligent control of electric radiators with pilot wire

The EnOcean Pilot Wire Heater Module is easy to install on all pilot wire electric radiators, making them smart and connected. It is EnOcean 3.0 certified and can be controlled by a controller, an opening or motion detector, or a compatible home automation system.

Thanks to its 6 modes (Comfort, Comfort -1°C, Comfort -2°C, Eco, Frost Protection, Off), heating management becomes intelligent to save energy and provide greater comfort for the occupant.

6 modes
The Fil Pilote Heating Module features 6 modes: Comfort, Comfort -1°C, Comfort -2°C, Eco, Frost Protection and Off, for local or automatic control.

Consumption measurement
The module measures instantaneous power and cumulative energy, to measure radiator consumption and help save energy.

N

o-work installation
This Pilot Wire Heating Module is easily installed in the cable gland of the electric radiator.

Ultra-compact profile

This Pilot Wire Heating Module is a concentrate of technology and functions, with a thickness of less than 17mm.

R

emote commissioning

Using the latest EnOcean specifications, the NodOn Module can be installed without any physical intervention by the installer.

Note: When used in an electrical panel, this module must not be installed on a radiator of more than 1500 W.

FUNCTIONS:

  • Control a pilot wire electric heater remotely 6
  • modes available:
  • Comfort, Comfort -1°C, Comfort -2°C, Eco, Frost protection, Off Launch
  • scenarios linked to heating modes, according to time and day of the week
  • Control heating according to presence or absence in a room
  • Cut heating automatically if window is open
  • Optimize heating management automatically in several rooms
  • Consumption measurement
  • Signal repeater
  • Installation without work
  • Remote commissioning
  • Small,
  • discreet and attractive
  • Easy to use and install
  • EnOcean technology
  • Includes Quickmove technology

TECHNICAL SPECIFICATIONS:

  • Power supply: 230V AC ~ 50Hz
  • Consumption: < 1W
  • Max radiator power: 3680 W (1500W if installed in a switchboard)
  • Measurement of instantaneous power (W) and cumulative energy (Wh) (compatible home automation system required)
  • Radio frequency band used :
  • 868.0 to 868.6 Mhz Maximum radio power: +10dBm
  • Range: up to 30m indoors
  • Operating temperature: 0°C to 40°C
  • Protection rating: IP 2X
  • Pairing: up to 22 controllers
  • EEP (EnOcean® Profile): D2-01-0C
  • Dimensions: 44 x 41 x 16.9 mm
