DSGW-211 OpenHAB EnOcean Gateway (BLE 5/Zigbee/Matter to LTE/Ethernet/WiFi)

DSGW-211 EnOcean gateway uses TCM310 chipset and supports 868MHz and 902MHz, along with BLE 5 / Zigbee / Matter / LTE / Ethernet / WiFi 2.4G & 5G options to offers dependable connectivity for a variety of EnOcean IoT devices in smart home and building, energy monitoring, and smart manufacturing, featuring compatibility with OpenHAB and support for multiple protocols such as Zigbee, Z-Wave, and Bluetooth 5.2.

Its distinguishing feature is the support for the Enocean protocol, enabling integration with corresponding sub-devices and enhancing connectivity range.

 Product Feature Summary of DSGW-211 EnOcean Gateway​

  • Support 5V USB type-c power supply
  • Support IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
  • One WAN/LAN 100Mbps variable network port
  • One USB2.0 port
  • Backup lithium battery power
  • Support LTE Cat1
  • Support Bluetooth 5.2, Zigbee3.0（Matter）, and EnOcean

Hardware Block Diagram​

Mechanical Requirement

Drawing​

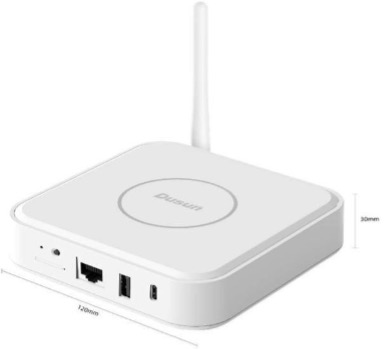

Interface and Dimensions​

Specification

Technical Specification​

CategorySpecifications
CPUPX30 Quad-core Cortex A35
SystemDebian 11
RAM2GB
eMMC32GB
TF CardUp to 128GB
Power SupplyUSB Type-C 5V/3A
ResetFactory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
SwitchOn/Off power
Network Interface1 * WAN/LAN 10/100 Mbps variable
USB1* USB2.0
SIM Card Slot1 * Micro SIM Card slot
TF Card Slot1 * TF Card slot
Indicator LEDs(RGB)1). Power & battery LED 2). Wireless LED 3）LTE indicator
AntennaZigbee PCB Antenna, Wi-Fi/ BLE/ LTE FPC Antenna, Enocean SMA Antenna
Li battery5000 mAh
Installation methodFlat, Ceiling, DIN
RTCReal-Time Clock operated from an onboard battery
Operating Temperature-10℃~55℃
Storage Temperature-20℃~65℃
Operating humidity10%~90%
IP ratingIP22

Communication Performance​

 Wi-Fi Performance​

  • IEEE Wireless LAN standard: IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE802.11b
  • Data Rate：
    • IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
    • IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
    • IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band​ MCS0~MCS7 @ HT40/ 2.4GHz band​ MCS0~MCS9 @ HT40/ 5GHz band
    • IEEE 802.11ac: MCS0~MCS9 @ VHT80/ 5GHz band
  • Sensitivity:
    • VHT80 MCS9: -60dBm@10% PER(MCS9) /5GHz band
    • HT40 MCS9: -63dBm@10% PER(MCS9) /5GHz band
    • HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
    • HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band
  • Transmit Power:
    • IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band
    • IEEE 802.11ac: 16dBm @HT80 MCS0 /5GHz band
    • IEEE 802.11n: 14dBm @HT20/40 MCS7 /5GHz band
    • IEEE 802.11n: 16dBm @HT20/40 MCS0 /5GHz band
    • IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHzband
    • IEEE 802.11g: 16dBm @54MHz
    • IEEE 802.11b: 18dBm @11MHz
  • Wireless Security: WPA/WPA2, WEP, TKIP, and AES
  • Working mode: Bridge, AP Client
  • Range: 50 meters maximum, open field
  • Highest Transmission Rate: 300Mbps
  • Frequency offset: +/- 50KHZ
  • Frequency Range (MHz): 2412.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
  • Bandwidth (MHz):20MHz/40MHz
  • Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM

Bluetooth Performance​

  • TX Power: 19.5dBm
  • Range: 150 meters minimum, open filed
  • Receiving Sensibility: -92dBm@0.1%BER
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz):2401.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW) < 10mW
  • Bandwidth (MHz):2MHz
  • Modulation: GFSK

ZigBee (Thread) Performance​

  • TX Power: 17.5dBm
  • Range: 100 meters maximum, open filed
  • Receiving Sensibility: -94dBm
  • Frequency offset: +/-20KHZ
  • Frequency Range (MHz):2400.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
  • Bandwidth (MHz):5MHz
  • Modulation: OQPSK

Enocean Performance​

  • Radio frequency:

​ 868 MHz for Europe and other countries adopting RED

​ 902 MHz for USA (FCC specification) and Canada (IC specification)

  • EnOcean interface: TCM 310
  • Transmit power: 3dBm maximum
  • Receive sensitivity: -97 dBm

LTE Cat1​

  • LTE FDD: B2/B4/B5/B12/B13
  • WCDMA:B2/B4/B5
  • LTE FDD Data rate:10(DL)/5(DL)

WAN/LAN​

10/100M bps

QA Requirement

Information DescriptionStandard(Yes) Custom(No)
ESD TestingYes
RF Antenna AnalysisYes
Environmental TestingYes
Reliability TestingYes
CertificationFCC, CE, RoHS
