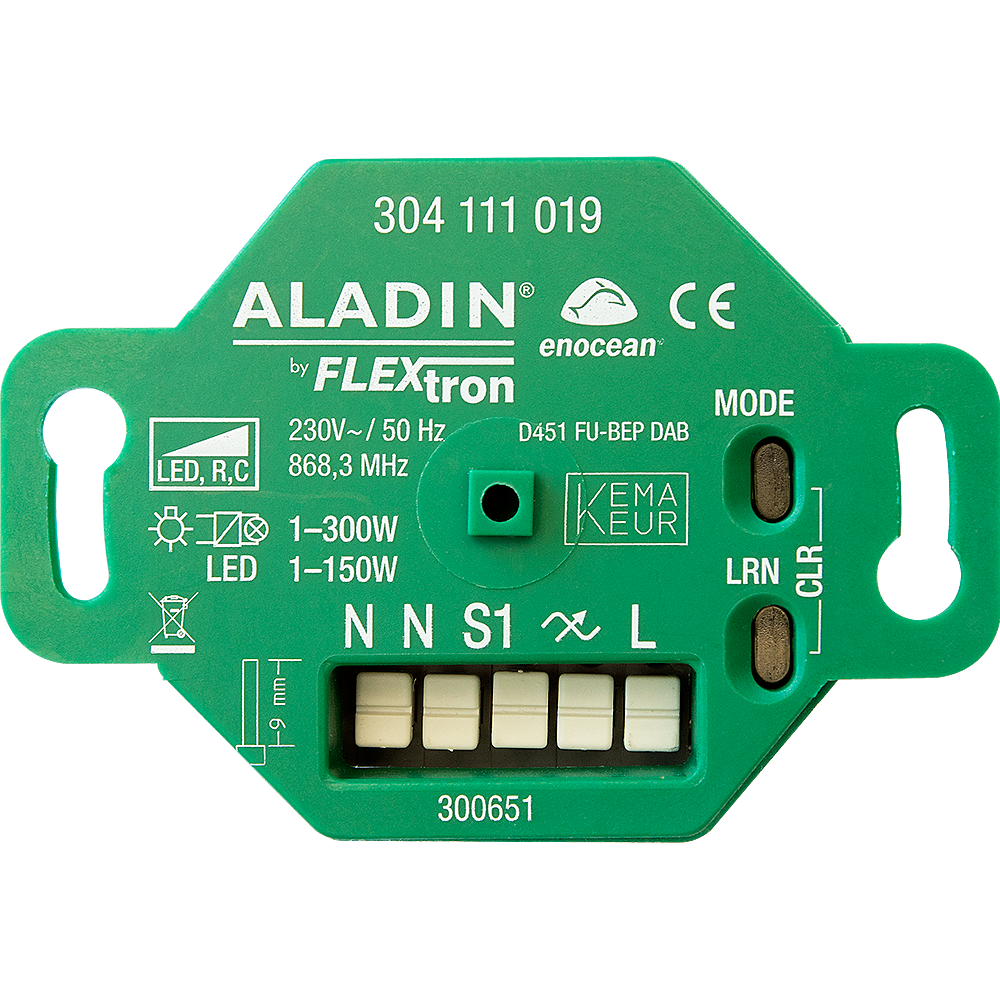

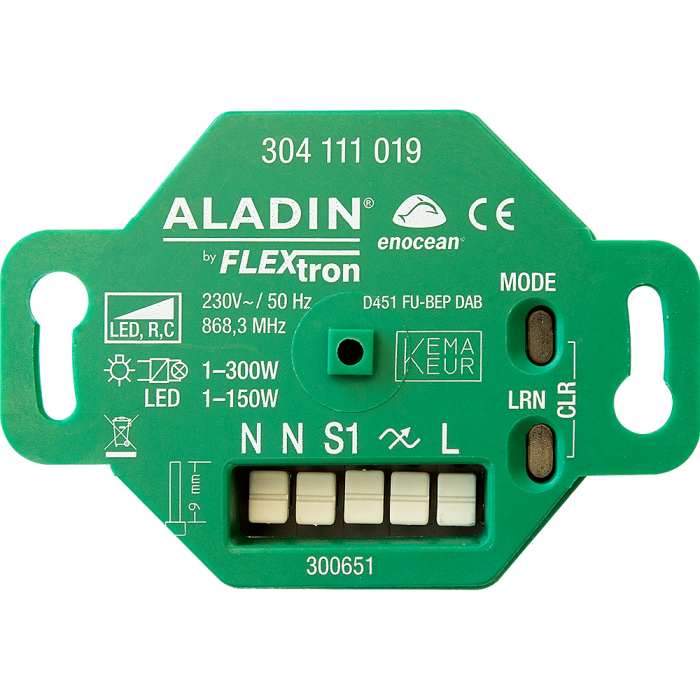

ALADIN LED dimming receiver 1 channel / with extension / 230V / UP / 300651

For dimming and switching LEDs (230V)

ALADIN dimming receiver for LED lights (230V). For dimming and switching of dimmable 230V LEDs, halogen and incandescent lamps. Control via ALADIN radio transmitter, or via extension unit (for wired pushbuttons), phase cut-off dimmer for loads “LED/R/C”, soft start to protect the luminaires, bidirectional with status info, various setting options.

Function:

• Switch / dim
• 2-button function with memory (standard)
• 2-button function without memory (adjustable values)
• 1-button function with memory
• Minutery (with shutdown warning), staircase light / times: 2 – 120 min
• Light scenes
• Hotel Card switch
• Presence and movement, light sensors
• Optional parameter settings: dimming speed, min/max. Dimmal value, dimming curve
• Repeater function adjustable
• Each function has various parameters (e.g. times/rocker occupancy etc.)

Application area:

• For dimming and switching LED lights (max. 150W)
• For dimming and switching halogen and incandescent lamps (max. 300W)
