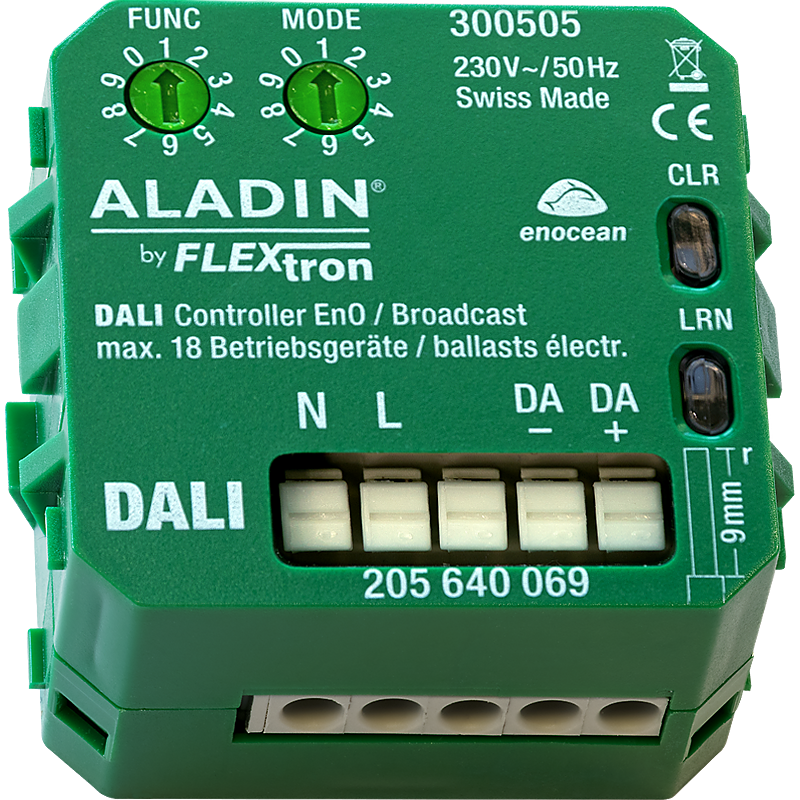

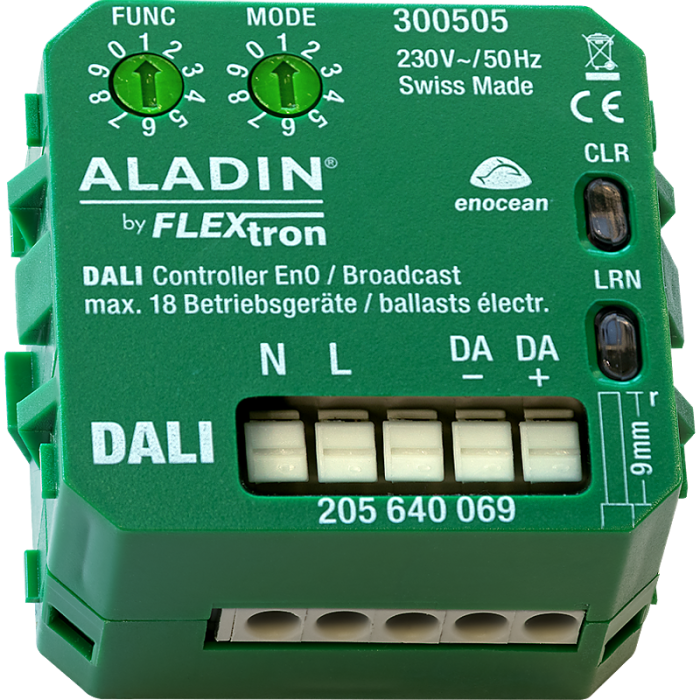

ALADIN EnO DALI control, broadcast / 300505

For DALI controls for lighting

The ALADIN EnO DALI Controller (DALI Master) switches and dims lighting via DALI bus with commands from ALADIN transmitter. The controller is controlled via ALADIN wireless pushbuttons, motion detectors, door contacts, etc. (all work without wiring and without battery). Up to 18 DALI operating devices (slaves) can thus be controlled with broadcast commands. Teach-in is quick and easy via 2 professional rotary switches (function/parameter) and 2 LED buttons (teach-in/delete/status display). Configuration via software is not necessary. The controller controls DALI operating devices (slaves) as 1 group in the functions: ON / OFF / Dimming / Memory.

Function:

• Switch / dimming via dali broadcast
• Dali-Master, controls Dali lights / Dali Evgs
• Control via Aladin radio button, motion detector, door contacts, multisensors
• 2-button function with memory (standard)
• 2-button function with fixed value (80-30%) when switching on
• 1-button function with memory
• 1-button function for hand transmitter with memory
• Minutery with fixed value (60-100%) and time (2-30 min)
• Minutery with shutdown warning, with fixed value (60-100%) and time (2-30 min)
• Motion detector as a full/semi-automatic (various values)
• HotelCard switch (various values)
• Door / window control (door contact / window handle)
• Brightness sensor (multisensor)
• Acceleration sensor (multisensor)
• Scene control (various radio button)
• Repeater function adjustable
• Reboot behavior adjustable (after interruption of tension)
• With assembly brain for better radio reception (e.g. up. Up installation with blind lid)
• Each function has various parameters (times, values, rocker occupancy, etc.)
• Control possible via KNX gateway including status message (dimmm value in %)

Application area:

• In all installations with DALI lighting
• Integrated power supply / up to 18 participants
• Max. 16 transmitters can be arranged (with/without secure encryption)
• In offices / businesses / schools / private buildings etc.
• In KNX systems with DALI control
