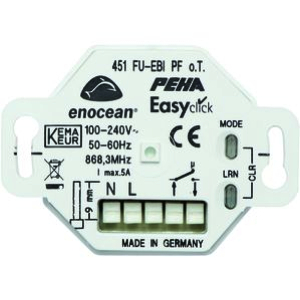

EnOcean Easyclickpro flush-mounting receiver, 1-channel, with potential-free contact

The bidirectional Easyclick receiver can not only receive radio signals, but also transmits back its status every time it changes. Actual ON/OFF switched states can then be visualised e.g. on the handheld transmitter D 450 FU-HS 128. The Easyclick receiver with potential-free contact serves to switch lights and other electrical consumers. A range of functions and parameters can be selected: • two-key operation ON/OFF (standard function) • button operation (pulse) • hotel card switch with definable follow-up time • stairwell light with selectable running time and shutdown warning • automatic OFF after selectable running time • fan function with delayed ON and with selectable follow-up time • save and retrieve 4 lighting scenes at the press of a key (one lighting scene per key) • window handle and window contact, visualisation also parallel to the switching outputs • movement detector and light sensor • A function can be defined individually for each of the max 32 programmed transmitters • Integrated repeater functions (1 level / 2 level) can be switched ON for each project, irrespectively of the set functions • Separate preassigned functions and parameters when e.g. window contacts, window handles, and movement detectors are being programmed

Technical data:
Own consumption: < 0.5 W (bistable relay)
Transmit frequency: 868.3 MHz
Voltage supply: 100–240 Vac/ 50–60 Hz
Neutral conductor: required
Ambient temperature: -20 °C to +40 °C
Storage temperature: -40 °C to +85 °C
Plugin terminals: max 1 x 1.5 mm²
Housing height: 28 mm
Rating: IP 20
Mounting lugs: for screwing down in switch sockets
Approvals: CE; KEMA/KEUR
Load types 230 Vac (110 Vac) [30 Vdc] Incandescent lamps 1200 W (600 W) [150 W] HV halogen lamps 600 W (300 W) [75 W]

  • Product No. D 451 FU-EBI PF o.T. (00364476)
  • Manufacturer Honeywell PEHAhttp://www.peha.de
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP A5-11-04, D2-01-08, A5-38-09, A5-38-08
  • Certification Certified Level 2
