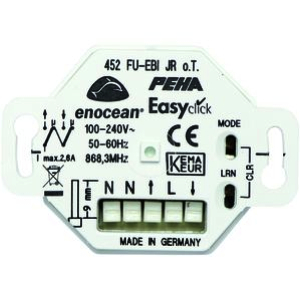

EnOcean Easyclickpro flush-mounting receiver for blinds/shutters

The bidirectional Easyclick roller/shutter receiver can not only receive radio signals, but also transmits back its status every time it changes. For instance, the top/bottom end position of a shutter/blind can be depicted as a virtual image and visualised e.g. on the handheld transmitter D 450 FU-HS 128. The Easyclick receiver is designed to regulate shutters and blinds.
A range of functions and parameters can be selected:
• two-key operation UP/STOP/DOWN with slat adjust (standard function blind)
• two-key operation UP/STOP/DOWN w/o slat adjust (standard function shutter)
• jog mode (ON/OFF)
• one-key operation UP/STOP/DOWN
• safety lock for maintenance work
• automatic ON/OFF
• sun sensor / twilight sensor / wind sensor / rain sensor
• 4 possible positions TOP/BOTTOM for lighting scenes
• lockout protection with window contact / window handle
• A function can be defined individually for each of the max 32 programmed transmitters
• Integrated repeater functions (1 level / 2 level) can be switched ON for each project, irrespectively of the set functions
• Separate preassigned functions and parameters when e.g. window contacts and window handles are being programmed

Technical data:
Own consumption: < 0.5 W (bistable relays)
Transmit frequency: 868.3 MHz
Voltage supply: 100–240 Vac/ 50–60 Hz
Neutral conductor: required
Ambient temperature: -20 °C to +40 °C
Storage temperature: -40 °C to +85 °C
Plugin terminals: max 1 x 1.5 mm²
Housing height: 28 mm
Rating: IP 20
Mounting lugs: for screwing down in switch sockets
Approvals: CE; KEMA/KEUR
Connecting data: I max 1.0 A

  • Product No. D 452 FU-EBI JR o.T. (00364356)
  • Manufacturer Honeywell PEHAhttp://www.peha.de
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP A5-11-03, A5-38-08
  • Certification Certified Level 2
