EnOcean Easyclickpro aerial module for DIN-rail system

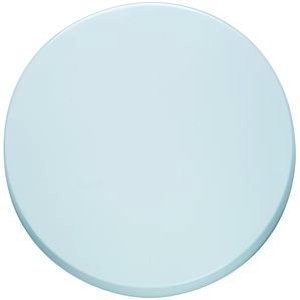

The bidirectional Easyclick aerial module receives all signals from Easyclick transmitters and repeaters inside its range. These are then rerouted via an RS485 interface to the Easyclick DIN-rail modules. The Easyclick modules are linked to each other with modular plug-in cables. Up to 128 modules can be connected to the RS485 bus. If required, also more than one aerial module can be connected to the Easyclick modular system. Technical data: Fitted with a white cover, the plastic housing is ready for surface mounting on a wall or ceiling.
Necessary equipment:
Power supply: https://www.enocean-alliance.org/product/peha_easyclick-module-spv-2-te/
Technical Data:
Connecting terminals for the RS485 bus
Rating: IP 20
Frequency: EnOcean 868.3 MHz
Own standby consumption: approx 0.4 W, operation approx 22 mA / 0.5 W
Housing measurements: dia approx 130 mm, H approx 29 mm
- Product No. D 450 ANT (00377816)
- Manufacturer Honeywell PEHAhttp://www.peha.de
- Category Gateway & Building Management Systems, Gateway: RS485
- Frequency 868 MHz (ASK): Europe, China
- RX-EEP A5-11-04, A5-38-09, A5-38-08
- Certification Certified Level 2
Downloads
- Datasheet 00377816_EN_Datenblatt.pdf
- Manual PEHA_M_450_ANT-00377816-Rev04-190408.pdf
