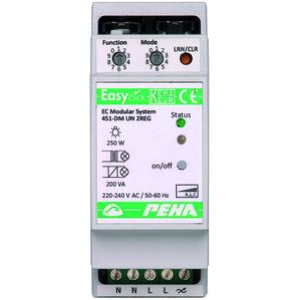

EnOcean Easyclickpro module UNI dimming, 1-channel, 2 HP

The EnOcean Easyclick UNI dimming module receives its telegrams via the external Easyclick aerial module and uses its power sections to implement the configured functions and parameters. The Easyclick modules are linked to each other with modular plug-in cables. The Easyclick UNI dimming module is used to switch and dim lights based on a range of functions and parameters configured at rotary switches. A function can be defined individually for each programmed transmitter. Standard function: 2-key ON/OFF/DIM function with memory. Selected functions include e.g. 2.key function with brightness preset, 1-key function with memory, time functions, lighting scene control, etc.

Necessary equipment:
Antenna: https://www.enocean-alliance.org/product/peha_easyclick-antenna_module/
Power supply: https://www.enocean-alliance.org/product/peha_easyclick-module-spv-2-te/

Technical data:
DRA device for mounting on 36 mm DIN rails (2 HP)
Own consumption standby = approx 0.29 W operation = approx 20 mA / 0.48 W
Universal dimmer with 1 channel for R, L, and C loads. min load 15 W and 20 VA, max 250 W and 200 VA
Rotary switches for functions and parameters
LRN/CLR button
LED status display
Modular sockets
incl 30 cm connecting cable
Rating: IP 20
Approvals: CE, KEMA/KEUR

  • Product No. D 451 FU-DM UN 2REG (000377876)
  • Manufacturer Honeywell PEHAhttp://www.peha.de
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP A5-11-04, A5-38-09, A5-38-08
  • Certification Certified Level 2
