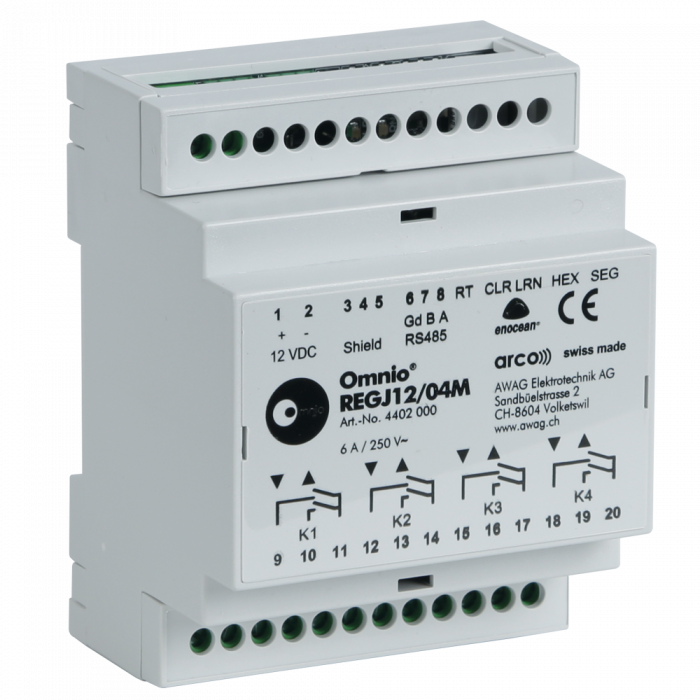

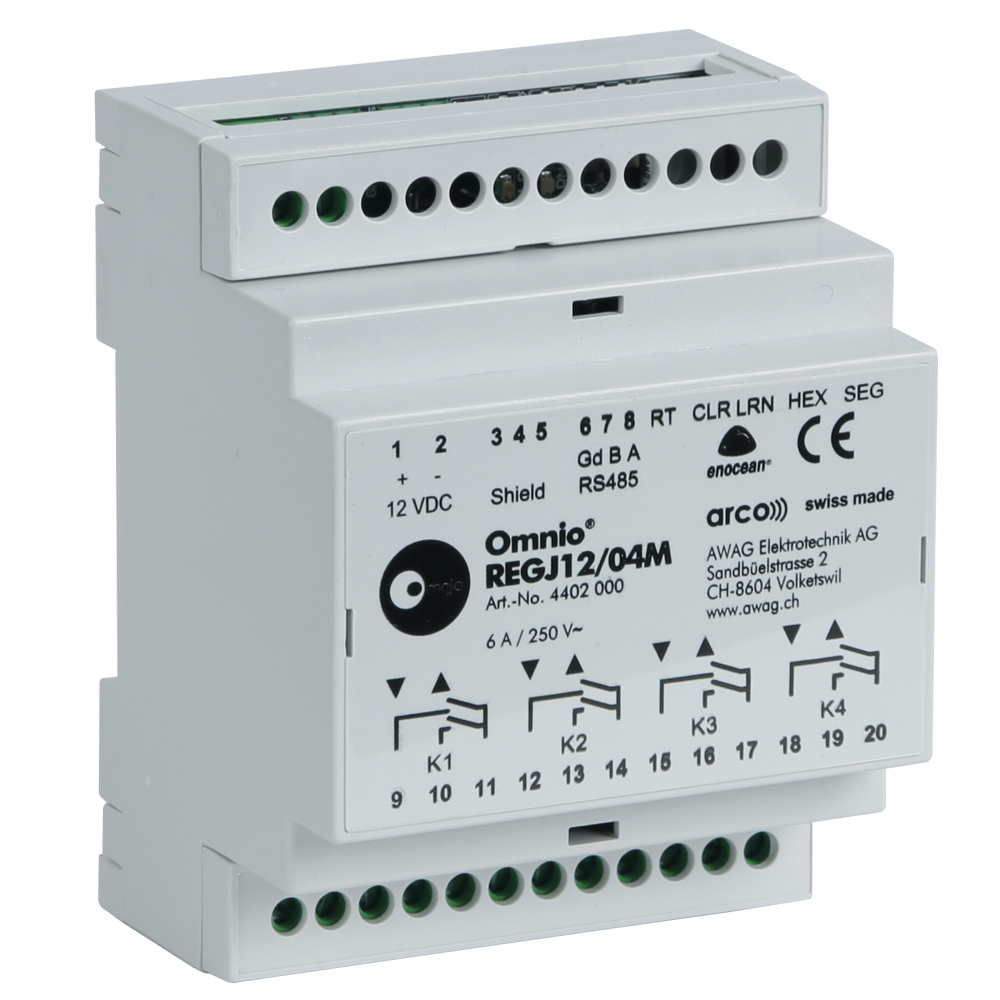

Omnio DIN rail mounted blind actuator 4-channels REGJ12/04

The Omnio DIN rail mounted blind actuator 4-channels REGJ12/04M is a device to control 230 V~ tubular motors of blinds, sun blinds, awnings, sliding gates or garage doors. Its eight potential free interlocked outputs are able to regulate four drives and these can be actuated from up to 50 Omnio radio transmitters. This allows the exact positioning of the blinds and the slats. Further features are monitoring of window and sliding doors, automatic functions for temperature-, wind- and rain sensors and positioning functions including feedback to higher-level systems or visualisations. Bidirectional communication, EnOcean Equipment Profile (EEP) D2-05-01. ARCO ready (AWAG Remote Commissioning). Suitable as DIN rail mounted device in distributing cabinets, width 4 TE.

  • Product No. 4402 000
  • Manufacturer AWAGhttp://www.awag.ch/
  • Category Actuator / Relay Receiver, Receivers & Controllers
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP D2-05-01
  • Certification Certified Level 2
