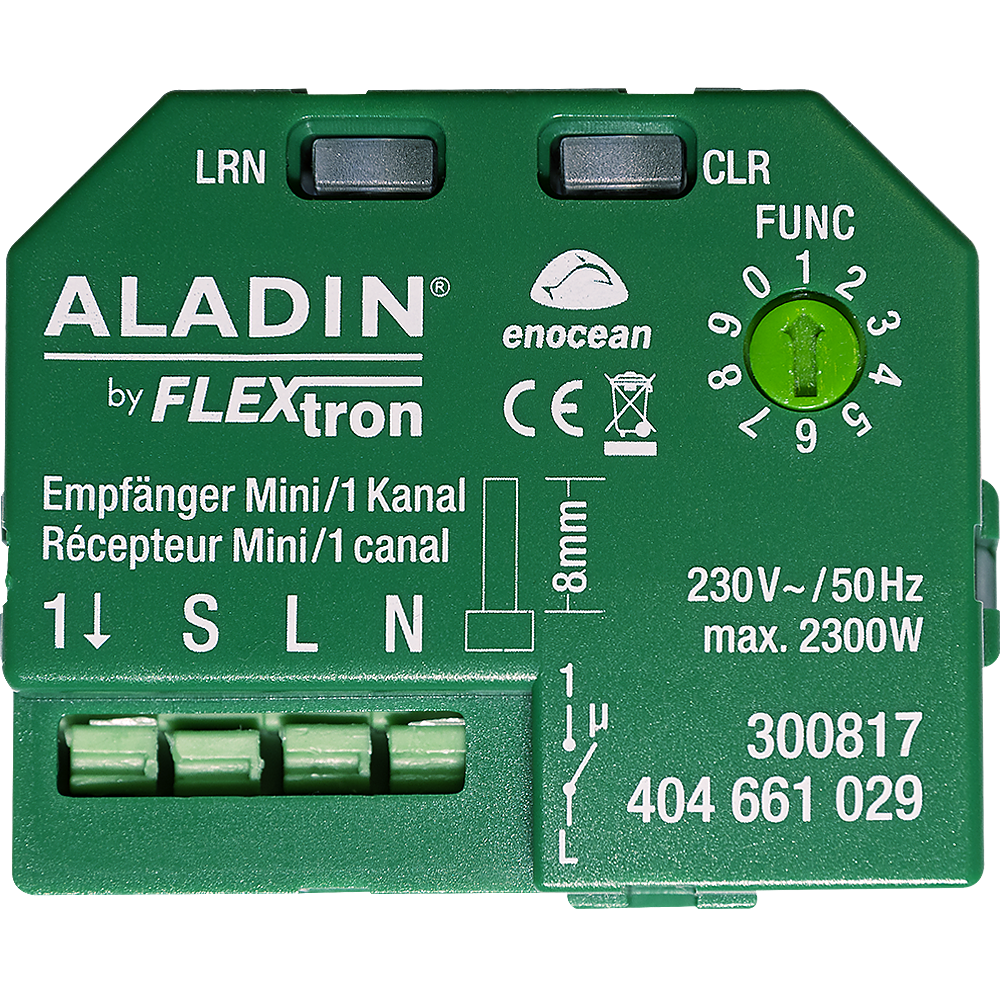

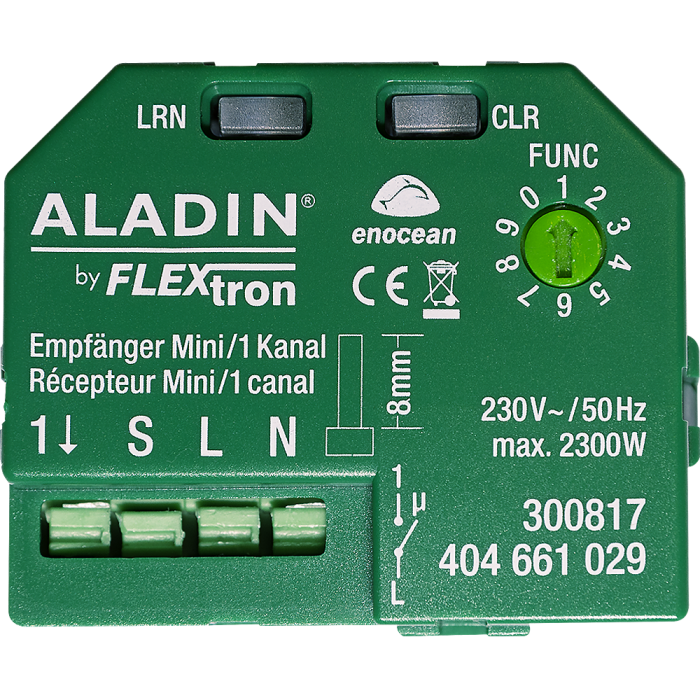

ALADIN receiver Mini, 1-channel / 230V / with extension input / 300817

For lighting/general controls/small design

ALADIN mini receiver with extension input (for conventional push buttons/switches) for switching lighting and other electrical consumers. With 9 easily adjustable functions (switching, pulse, timer with 1- or 2-button function and hand-held transmitter). Easy programming of ALADIN transmitters (wall/hand switches, etc.) using a function dial and program/clear button. Ideal for renovations or retrofitting in residential and commercial buildings (installation of wireless switches without wiring/no slotting, drilling, etc.). Ideal for retrofitting additional switching points on conventional push buttons/switches.  If additional functions are required, use type 300611.

Functions:

• 2-button function (standard)
• 1-button function
• Handheld transmitter functions (buttons A – D)
• Pulse function (without/with emergency stop)
• Minuterie 5 min.
• Extension input: Switching with conventional push buttons/switches
• Extension input: Minuterie 5 min.
• Repeater function adjustable
• Bidirectional / status feedback

Application area:

• For expanding existing installations (wired) with wireless push buttons
• For renovations with different circuits (expansion with wireless push buttons)
• For buildings with problematic LEDs (higher switch-on peaks)
• Small design / installation in tight spaces
• Control via smartphone possible / Smart Home / Homee compatible from device label with Ⓗ
