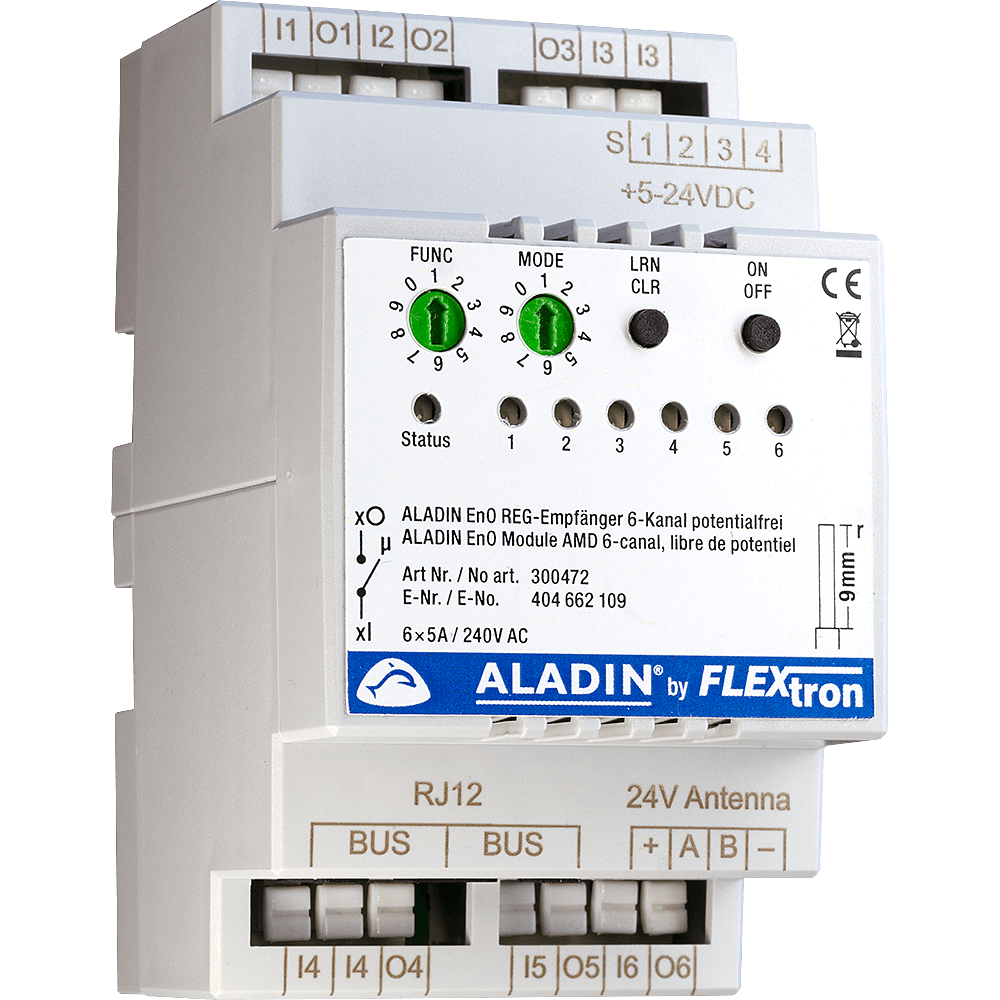

ALADIN EnO REG receiver 6-channel switching, potential-free, without power supply / 300472

For lighting / ventilation and general controls

Series-mounted switching module (3TE), 6-channel, without power supply for the internal BUS. For controlling lighting, ventilation, controls, and other electrical consumers. Installation in the control cabinet (DIN rail). The receiver can be controlled via ALADIN radio buttons or multisensors and assigned different functions and parameters (up to 30 different settings). Programming is easy using professional rotary switches and buttons. Up to 128 different REG modules or antenna modules can be easily combined via the module BUS (RJ12 connector). Reliable radio connection even in large buildings, as any number of antenna modules can be connected in series to the REG system via the antenna bus (G51 cable). Six potential-free relay outputs can be set independently of each other. The receiver can also be controlled by transmitters with the latest secure encryption.

Function:

• 2-button function (standard)
• 1-button function
• Pulse function (without/with emergency stop)
• Hotel card function
• Minuterie (without/with switch-off warning), staircase lighting / times: 2 – 60 min
• Minuterie without switch-off warning
• Fan function (delayed ON / with follow-up time OFF)
• Control via ALADIN multi-sensors (temperature/humidity)
• Presence detector / motion detector
• Multi-sensor
• Light scenes
• Control with window monitoring (window contact)
• Control via KNX gateways
• Potential-free

Application area:

• For central control of any loads via all radio transmitters
• Each channel can be controlled individually
• For potential-free switching/control of any loads with 24VDC and 230VAC
• Installation in control cabinet/panel (TE3)
