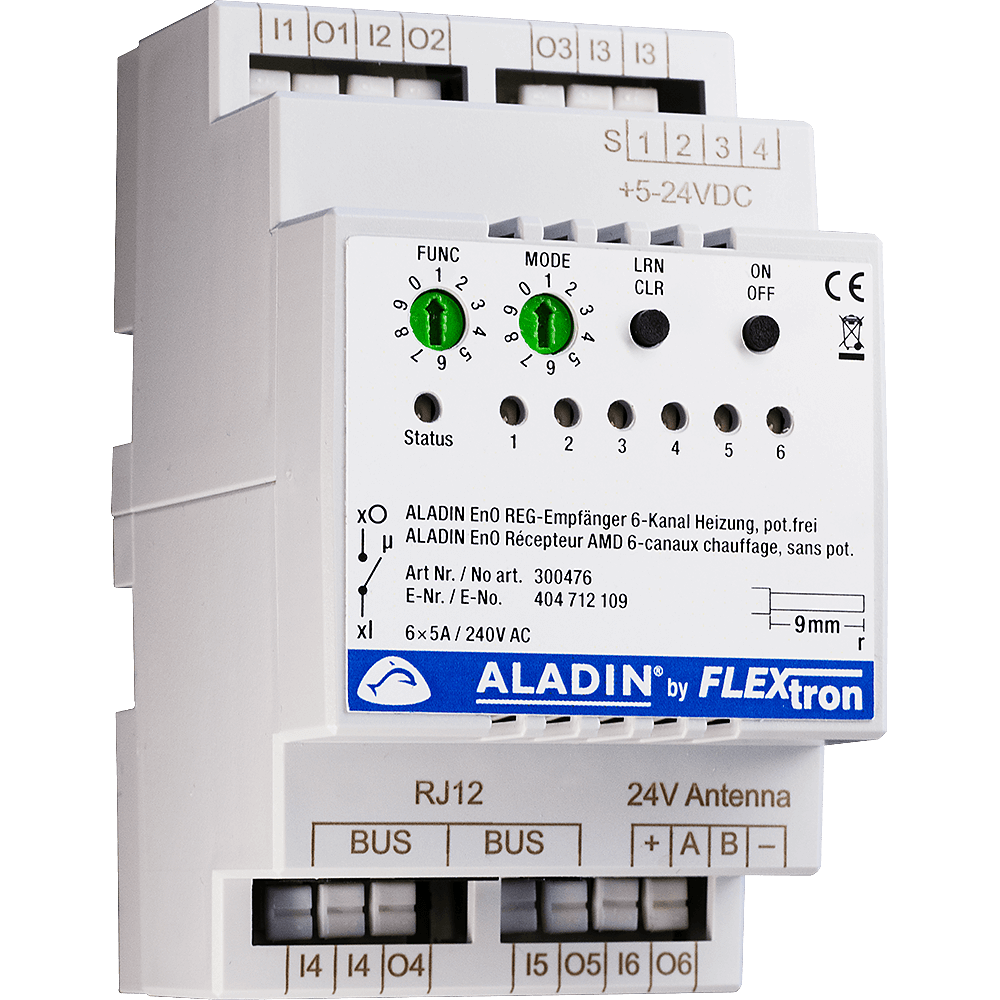

ALADIN EnO REG receiver 6-channel heating, potential-free, without power supply / 300476

For heaters and cooling

Series-mounted switching module (3TE), 6-channel, without power supply for the internal BUS. For controlling heating and cooling systems and other electrical consumers. Installation in a control cabinet (DIN rail). The receiver can be controlled via ALADIN wireless thermostats or multisensors and assigned different functions and parameters (up to 30 different settings). For a quick system test, control via radio push buttons is also possible. Programming is easy using professional rotary switches and buttons. Up to 128 different REG modules or antenna modules can be easily combined via the module BUS (RJ12 connector). Reliable radio connection even in large buildings, as any number of antenna modules can be connected in series to the REG system via the antenna bus (G51 cable). Six potential-free relay outputs can be set independently of each other. The receiver can also be controlled by transmitters with the latest secure encryption.

Function:

• Heating function (with/without setpoint adjustment) / Setpoint adjustment +/- 4K
• Heating function (with/without setpoint adjustment) / Setpoints from 17°C to 25°C
• Cooling function (controlled by multi-sensor) / Setpoints from 18°C to 26°C
• Heating + cooling function (controlled by multi-sensor) / setpoints from 17°C to 25°C
• Holiday mode / energy saving (controlled by radio button) / value 16°C
• Test mode for quick system check (controlled by radio button)
• Controlled by radio thermostats (with/without setpoint adjustment)
• Control via ALADIN multi-sensors (temperature/humidity)
• Control via radio button (for quick testing of the control system)
• Control via external transmitters via higher-level systems
• Control via KNX gateways
• 6 individually controllable channels (1 sensor can be programmed per channel)
• Potential-free

Application area:

• For heating systems
• For cooling systems
• For controlling actuators in underfloor heating systems
• For controlling electric heating systems
• For controlling heating and cooling systems
• For potential-free switching/control of any loads with 24VDC and 230VAC
• Installation in control cabinet/panel (3TE)
