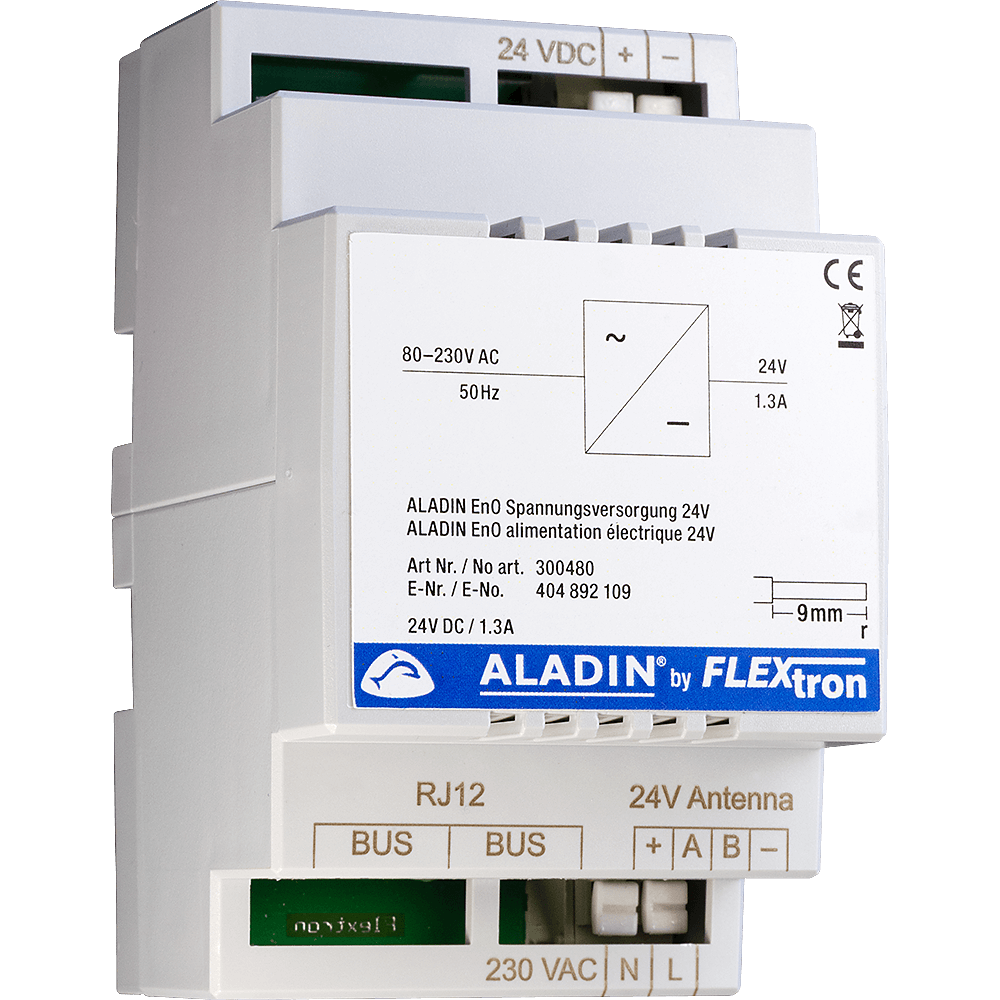

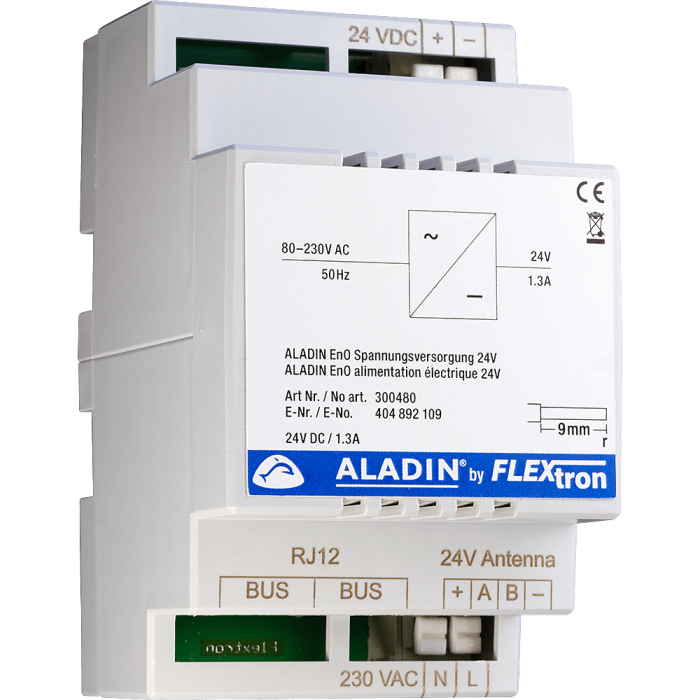

ALADIN EnO REG power supply / 300480

Power supply for REG devices with connection for antenna module and 24 VDC backup output

Power supply (SPV) for the internal ALADIN module bus and ALADIN antenna modules. Each power supply can supply modules up to a maximum of 1300 mA. Secure radio connection even in large buildings, as any number of antenna modules can be connected in series to the REG system via the antenna bus (G51 cable).

Function:

• Power supply (24V) for all ALADIN REG modules (max. 1300 W)
• The module supplies ALADIN REG modules via the RJ12 connector cable supplied
• The module supplies antenna modules (G-51 cable required)
• The module supplies any devices with 24VDC via a reserve output

Application area:

• Installation in control cabinet / panel (3TE)
• Connection for the antenna module
