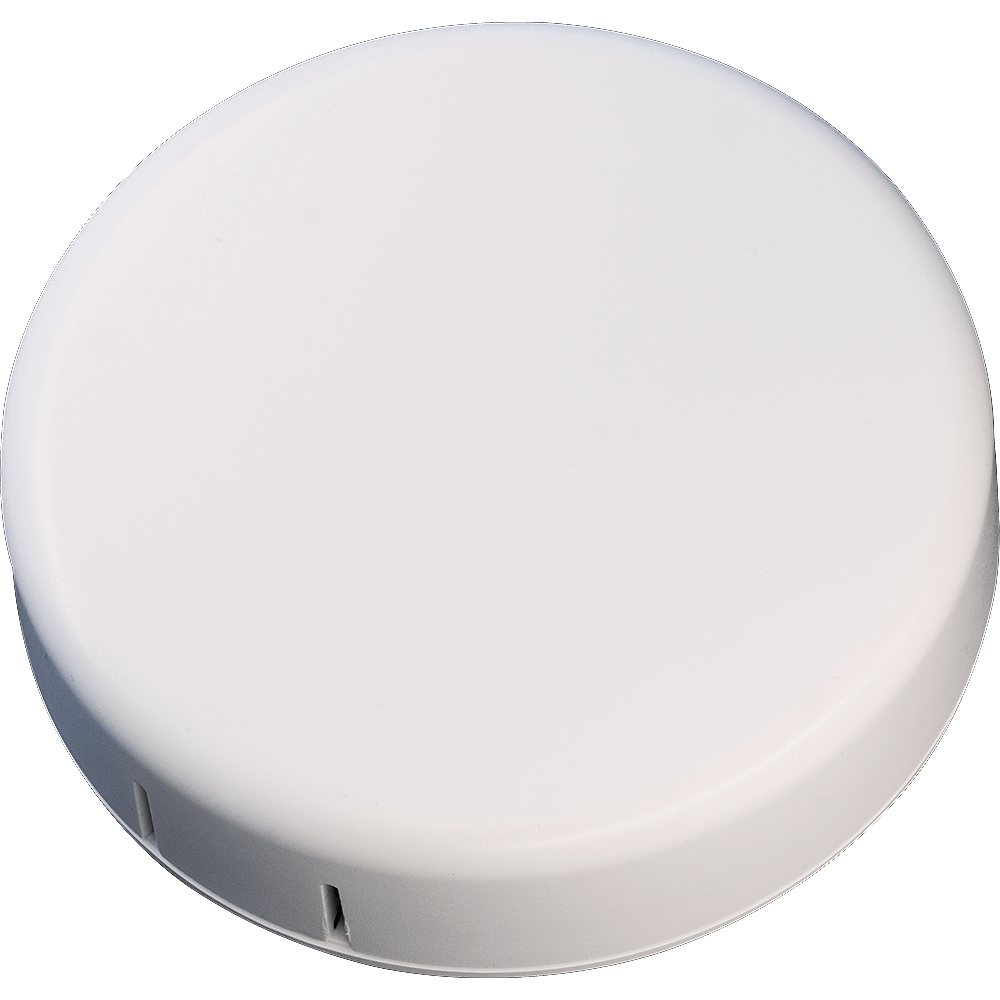

ALADIN EnO REG antenna module / 300482

For ALADIN EnO REG receivers

Receiver module for REG receivers. At least one antenna module is required in every ALADIN REG module system. Multiple antenna modules can be combined. Up to 128 different REG modules or antenna modules can be easily combined via the module BUS (RJ12 connector). Reliable radio connection even in large buildings, as any number of antenna modules can be connected in series to the REG system via the antenna bus (G51 cable).

Function:

• Receives, transmits, and checks radio telegrams
• Additional antenna modules can be retrofitted via module bus if required
• Receives repeater signals and forwards them via module bus
• At least one antenna module is required (REG modules do not have an internal receiver unit)

Application area:

• Installation on every floor / in the transmitter reception area
• Cabling on REG with SPV (cable G51 / U72), up to max. 1000 m
• Modulates radio protocols on module BUS and forwards them to REG
