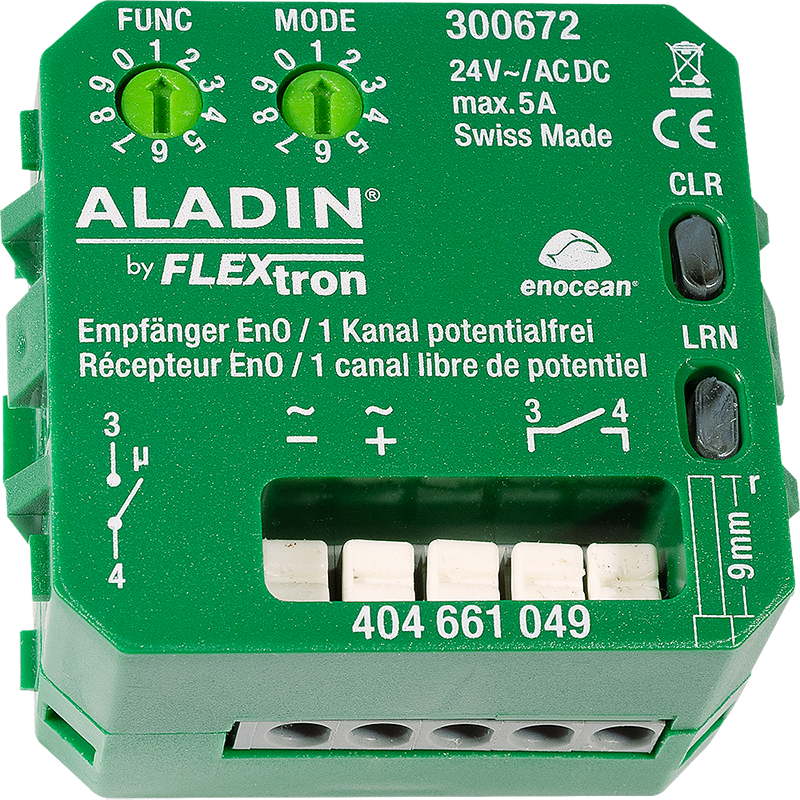

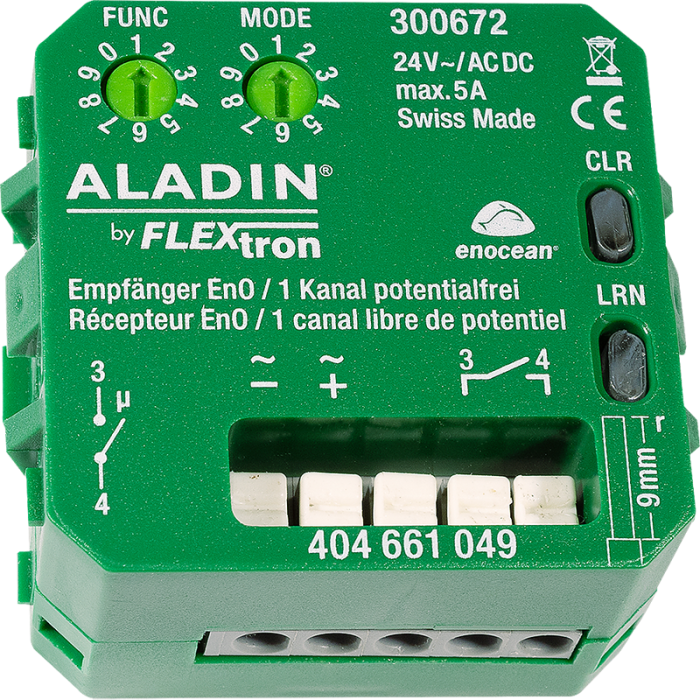

ALADIN EnO receiver, 1-channel / 24V / potential-free / 300672

For door control and general control

1-channel radio receiver (potential-free) for controlling doors, gates, windows, lighting, and other low-voltage systems. The receiver can be individually controlled with various ALADIN transmitters and assigned different functions and parameters (up to 90 different settings). Multiple transmitters with different functions can also be stored on the same channel. Programming is easy using professional rotary switches and buttons. The receiver has a repeater function and status display for the active outputs. The receiver can also be controlled by transmitters with the latest secure encryption. For optimal radio reception with flush-mounted installation (1×1), the receiver features a mounting system newly developed by Flextron. Ecologically manufactured housing made from 92% recycled plastic. Manufactured in Switzerland / Swiss Made

Function:

• 2-button function (standard)
• 2-button function with switch-off delay
• 2-button function with flashing (e.g. signaling at doors)
• 1-button function
• 1-button function for hand-held transmitters
• Pulse function (without/with emergency stop)
• Pulse function (without/with emergency stop) with inverting switch
• Minuterie (without/with switch-off warning), staircase lighting (times: 2 – 120 min)
• Safe control of PLC with short times: 1s / 5s / 30s
• Fan function with pre-run/post-run times (various running times)
• Control with window monitoring (window contact / window handle)
• Motion detector as fully/semi-automatic (various values)
• Acceleration sensor (multisensor)
• Light sensor / humidity sensor (multisensor)
• Hotel card switch (various values)
• Scene control (light, etc.)
• Repeater function adjustable
• Reboot behavior adjustable (after power failure)
• With mounting bracket for better radio reception (e.g., flush-mounted installation with blank cover)
• Each function has various parameters (times, values, rocker assignment, etc.)

Application area:

• Potential-free switching and control of various consumers
• Door control
• Lighting control
• Motor and fan control
• Timer control (delay times)
• Pulse controls
• Control via transmitter with/without secure encryption (16 transmitters)
• Control with various sensors
• Control via smartphone possible / Smart Home / Homee compatible from device label with Ⓗ
